Parameters and catalogs

Detector type	Stationary
Output signal	ModBus RS485, 2x Analog output 4-20mA/0-10V
Power	24 VDC
Type of gas	CL2 - Chlorine
Weight	0.44 kg

Instructions for use download

Download PDF

Catalog sheet download

Download PDF

Data sheet download

Download PDF

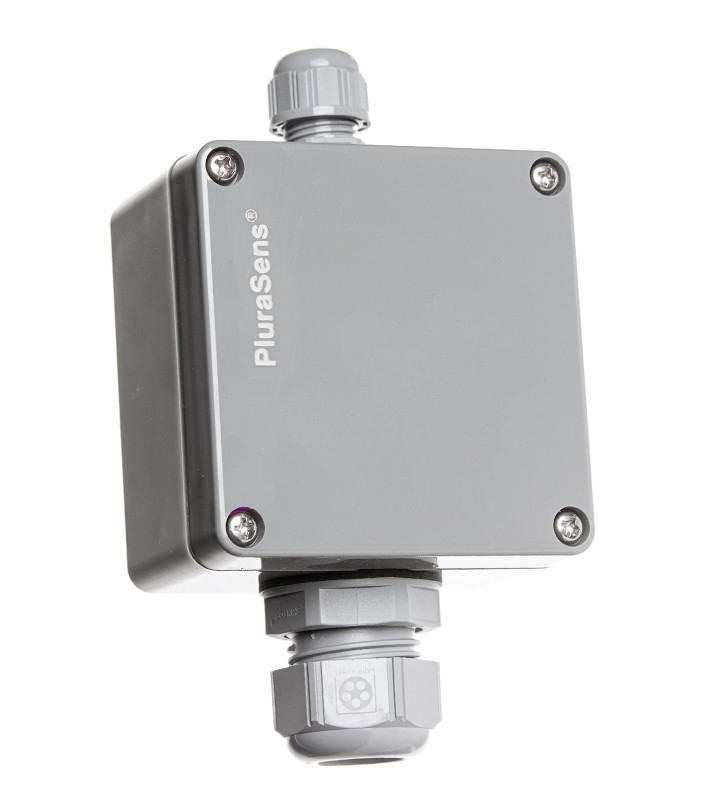

The E2618-CL2 concentration sensor is a member of the new PluraSense ® range of multifunction meters . It uses a fully calibrated and temperature compensated electrochemical gas sensor with excellent repeatability, stability and long life.

The E2618 series sensors are an intelligent solution for modern applications with ModBus RS485 communication and two analog outputs 4-20mA / 0-10V .

The sensor is supplied in versions:

wall
wall mounted with remote probe
on the pipe

The device can be delivered with or without a display LCD.

THE SENSOR IS SENSITIVE TO CHLORINE

Each sensor is factory calibrated to default values (described in the manual). However, recalibration is required after 6 months. The service life of the sensor is 2 years. Calibration may only be performed by a person certified by the manufacturer.

Do not hesitate to contact us for recalibration!

Properties:

accurate and stable measurement
robust cabinet for wall or pipe
two analog outputs adjustable to 4-20 mA or 0-10 V
digital interface RS485 Modbus RTU
possibility of remote probe
LCD indicator option
IP65 protection
connected or remote sensors
sensor life more than 5 years

Suitable applications:

swimming pools
spa
wastewater treatment plants
enclosed spaces accumulate potentially toxic concentrations of chlorine
