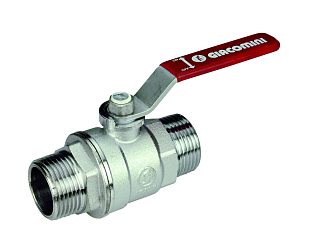

Chrome-plated ball valve Giacomini R253DL DN 15 (R253LX003)

  • 5 variants

Chrome-plated ball valve Giacomini R253DL DN 15 (R253LX003)

GIACOMINI
  • Product code: R253LX003
  • EAN : 8009902001575
  • Manufacturer code: R253LX003
  • Warranty: 2 years

Ball valve for drinking water, gases and liquid hydrocarbons Giacomini R253DL. DN 15. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price without VAT € 10,23
Price with VAT 21 % € 12,38

Varianty produktu

+

Would you like to get a price offer? Contact us

Parameters and catalogs

Connection size DN 15
Connection type Male thread
Medium temperature -20...185 °C
Pressure PN 42
Type of fitting Two-way
Weight 0.52 kg

CATALOG SHEET download

Download PDF

ASSEMBLY INSTRUCTIONS download

Download PDF

ASSESSMENT FOR CONTACT WITH DRINKING WATER download

Download PDF

MANUFACTURER DECLARATION download

Download PDF

DECLARATION OF CONFORMITY download

Download PDF

The Giacomini R253DL ball valve is certified for contact with drinking water. In addition to water, it is also intended for the distribution of gases (but not heating) and liquid hydrocarbons. It is made of chrome-plated brass.

Properties

  • connection size DN 15 = 1/2 "
  • operating pressure for sizes DN 10-20 - 42 bar
  • operating pressure for sizes DN 25-32 - 35 bar
  • operating pressure with drip. hydrocarbon 12 bar
  • min operating temperature with glycol -20 ° C
  • max temperature for steam 185 ° C and pressure 10.5 bar
  • red control lever
  • chrome-plated brass

Operating media

  • water (drinking, utility, heating)
  • oxygen
  • steam
  • air
  • paraffin
  • freon
  • methanol
  • glycol 50%
  • petrol, diesel
  • oil (mineral, hydraulic, synthetic)
  • argon
  • and others after consultation
