Chrome-Plated Ball Valve Giacomini R253DL DN 32 (R253LX006)

Chrome-Plated Ball Valve Giacomini R253DL DN 32 (R253LX006)
  • 5 variants

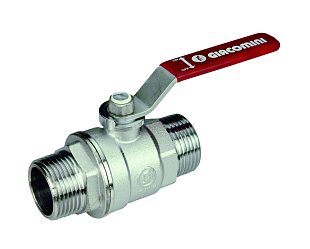

Chrome-Plated Ball Valve Giacomini R253DL DN 32 (R253LX006)

GIACOMINI
  • Product code: R253LX006
  • EAN : 8009902001667
  • Manufacturer code: R253LX006
  • Warranty: 2 years

Ball valve for drinking water, gases and liquid hydrocarbons Giacomini R253DL. DN 32. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 46,56
Price excluding VAT € 28,86
Price with VAT 21 % € 34,92

Product variants

− +

Trustpilot

Parameters and catalogs

Connection Type External thread
Medium Temperature -20...185 °C
Nominal diameter DN 32
Pressure PN 35
Type of fitting Two-way
Weight 0.92 kg

Catalog sheet download

Download PDF

Assembly instructions download

Download PDF

Assessment for contact with drinking water download

Download PDF

Manufacturer declaration download

Download PDF

Declaration of conformity download

Download PDF

The Giacomini R253DL ball valve is certified for contact with drinking water. In addition to water, it is also intended for gas distribution (but not heating gases) and liquid hydrocarbons. It is made of chrome-plated brass.

Features

  • connection size DN 32 = 1 1/4"
  • operating pressure for sizes DN 10-20 - 42 bar
  • operating pressure for sizes DN 25-32 - 35 bar
  • operating pressure with liquid hydrocarbon 12 bar
  • min. operating temperature with glycol -20 °C
  • max. temperature for steam 185 °C and pressure 10.5 bar
  • red operating lever
  • chrome-plated brass

Operating media

  • water (drinking, service, heating)
  • oxygen
  • steam
  • air
  • paraffin
  • freon
  • methanol
  • 50% glycol
  • petrol, diesel
  • oil (mineral, hydraulic, synthetic)
  • argon
  • and others upon consultation
