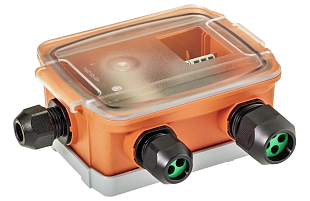

Serves to convert signals from MP-Bus to M-Bus. This converter enables the integration of heat energy meters and Belimo Energy Valve™ into systems using the M-Bus protocol. The device functions as an MP client, providing power to connected devices and facilitating communication between MP-Bus and M-Bus. It is designed for use in heating, ventilation, and air conditioning systems where reliable energy monitoring and control are important. It is suitable for stationary heating, ventilation, and air conditioning systems.

Technical Data

• Nominal voltage: AC/DC 24 V
• Voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption: AC 0.9 VA, DC 0.75 W
• Protection: IP65, SELV according to IEC/EN
• Operating temperature: -30...50°C
• Connection: Detachable spring terminal block max. 2.5 mm²

Additional Features

• Compatibility with thermometers 22PE.. and Energy Valve™
• Operational status indication via LED diodes (MP, FAIL, TX, RX, STS)
• Support for communication protocols: M-Bus (EN 13757-3:2018), MP-Bus (A91613-100)
• Protection class according to IEC/EN IP65
