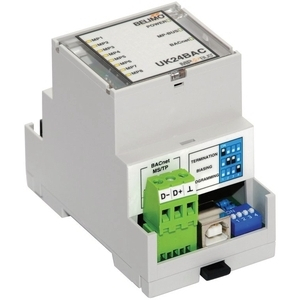

The converter allows the connection of MP-bus actuators or sensors to a BACnet MS/TP network. More information
Out of stock - can be requested
| Power Supply | 24 VDC, 24 VAC |
| Weight | 0.00 kg |
Technical data sheet DE download
Download PDFThe converter is a device that allows up to 8 MP-bus actuators or sensors to be connected to a BACnet MS/TP network, facilitating the monitoring and control of these devices within a building management system.
It enables digital communication with connected devices and the transmission of their statuses and values to the BACnet system. This allows the functions of actuators and sensors to be integrated into the BACnet system, enabling centralized control and monitoring.
Nominal voltage: AC 24 V, 50/60Hz / DC 24V
Operating range: AC/DC 21.6...26.4V
Connection: BACnet MS/TP, screw terminals,
Power supply: screw terminals,
MP-Bus: screw terminals,
(All terminals suitable for 2 x 1.5 mm²)
