Mechanical room thermostat Danfoss KP75 for temperature control and monitoring in cooling and HVAC technologies, featuring quick contacts and reliable operation. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Design | Room sensor |
| IP Rating | IP 30 |
| Medium Temperature | 0...40 °C |
| Weight | 0.42 kg |

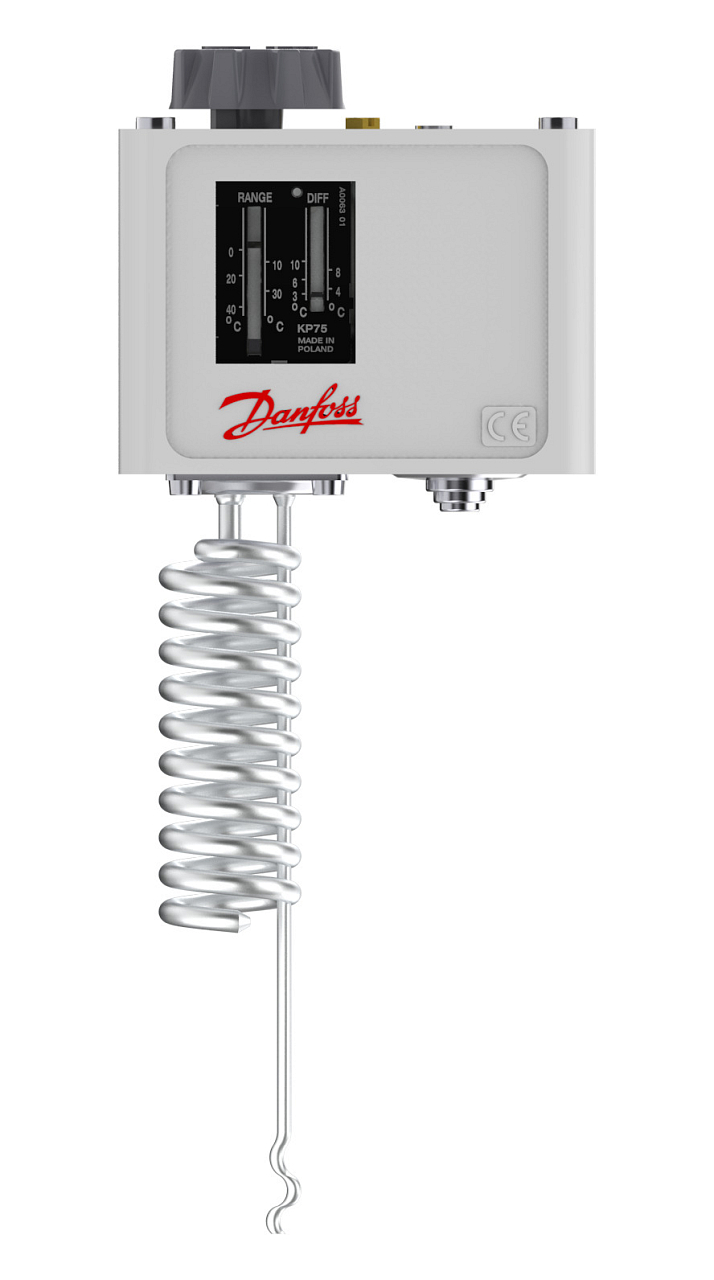

The Danfoss KP75 thermostat is a compact single-position mechanical thermostat with a spatial sensor for switching and monitoring temperature in cooling and HVAC applications. It uses snap-action (quick) contacts for stable switching and long-term reliable operation. The version with gold-plated contacts is also suitable for more sensitive signals and installations where reliable switching is crucial. Electrical connection is designed for cables 6–14 mm and the unit is intended for mounting on a flat surface / flat coupling.
| Type | KP75 (060L117166) |
| Setting Range | 0...40 °C |
| Differential (pressure difference) | 3...10°C |
| Max. Sensor Temperature | 80°C |
| Sensor | Spatial sensor (material: tinned copper Cu/Sn5) |
| Contact | SPDT (single-pole changeover) |
| Contact Load (gold-plated) | AC-1 10 A / 440 V; AC-3 6 A / 440 V; AC-15 4 A / 440 V; DC-13 12 W / 220 V |
| Ambient Temperature | -40...65°C (max. 2 h up to 80°C) |
| Protection | IP30 (IP44 with top cover) |
| Cable Entry | For cables with a diameter of 6–14mm |
