Mechanical Thermostat Danfoss KP81 with Remote Sensor for Controlling and Monitoring Higher Temperatures in Industry, Cooling, and Technology. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Design | Capillary |
| IP Rating | IP 30 |
| Medium Temperature | 80...150 °C |
| Weight | 0.46 kg |

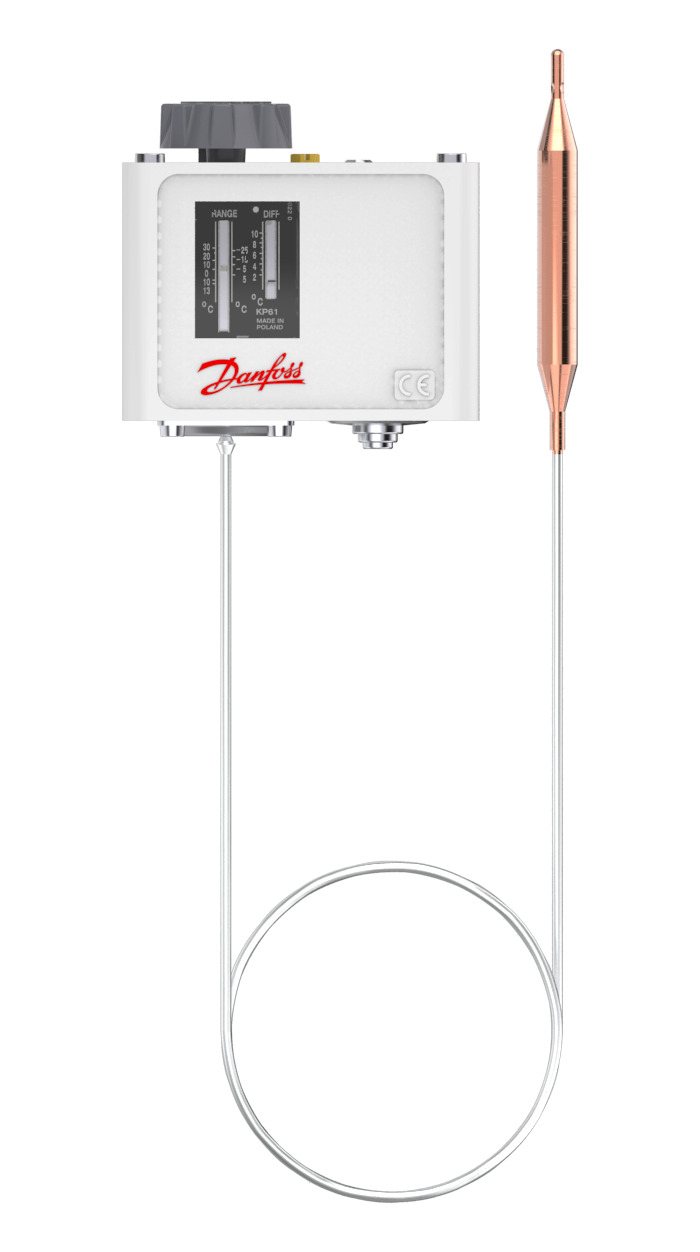

The Danfoss KP81 is a robust mechanical thermostat (temperature switch) designed for regulation, monitoring, and alarm functions in industrial applications and technologies. Thanks to the proven design of the KP series, it is also suitable for more demanding operations where reliable switching is required upon reaching the set temperature. The KP81 model uses a remote sensor (bulb) with a capillary, allowing the temperature sensing to be placed directly at the measurement site while keeping the switching unit in a safer area. The thermostat features an automatic reset and an SPDT changeover contact for universal use in control circuits.
| Temperature Setting Range | 80...150 °C |
| Hysteresis (differential) | 7-20 K (adjustable) |
| Max. Sensor Temperature | 200 °C |
| Sensor Type | Remote bulb |
| Sensor Dimensions (Ø x L) | 9.5 x 85 mm |
| Capillary Length | 3000 mm |
| Contact | SPDT (changeover) |
| Reset | Automatic |
| Protection | IP30 |
| Electrical Connection | Cable gland for 6-14 mm cable |
