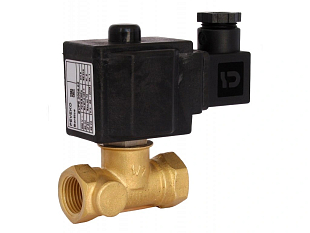

Direct-acting two-way solenoid valve, PEVEKO EVPE 2006.32 DN5 12VDC (EVPE 2006.32)

Direct-acting two-way solenoid valve, PEVEKO EVPE 2006.32 DN5 12VDC (EVPE 2006.32)
  • 4 variants

Direct-acting two-way solenoid valve, PEVEKO EVPE 2006.32 DN5 12VDC (EVPE 2006.32)

PEVEKO
  • Product code: 558308
  • Manufacturer code: EVPE 2006.*2
  • Warranty: 2 years

Direct-operated two-way solenoid valve for controlling water flow. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 121,05
Price with VAT 21 % € 146,47

Product variants

− +

Trustpilot

Parameters and catalogs

Atex No
Connection size 1/2"
Connection Type Internal thread
Function Closed without voltage
Gasket EPDM
IP Rating IP 54
Medium 0...1.6 bar
Nominal diameter DN 5
Power Supply 12 VDC
Pressure Overpressure
Temperature 80 °C
Weight 0.70 kg

Catalog sheet download

Download PDF

The two-way solenoid valve EVPE 2006.32 is designed for two-position control of water flow and other non-aggressive liquid media. This valve is not intended for controlling the flow of heating gases and other aggressive media.

The valve is closed when de-energized and open when energized.

Technical specifications:

  • Design: two-way, seat valve with elastic sealing
  • Material used: Body – brass, internal parts – stainless steel, sealing – EPDM rubber
  • Possibility of installing the valve in vertical piping
  • Control: Electrically; coil rotatable by 360°
  • Switching time (opening/closing): 1 s/1 s

The valve is supplied including the power coil and connector.
