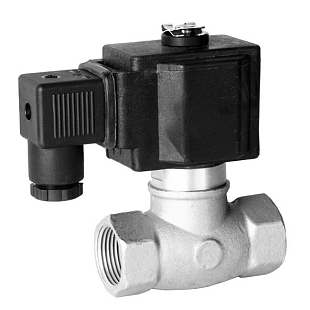

Two-way solenoid valve PEVEKO EVPE 2006.12 DN 5

Two-way solenoid valve PEVEKO EVPE 2006.12 DN 5
  • 4 variants

Two-way solenoid valve PEVEKO EVPE 2006.12 DN 5

PEVEKO
  • Product code: 5574.8.12
  • Manufacturer code: EVPE 2006.*2
  • Warranty: 2 years

Two-way solenoid valve for controlling water flow. The valve is closed when de-energized and opens when powered. We… More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 121,05
Price with VAT 21 % € 146,47

Product variants

− +

Trustpilot

Parameters and catalogs

Atex No
Connection size 1/2"
Connection Type Internal thread
Function Closed without voltage
Gasket EPDM
IP Rating IP 54
Medium 0...1.6 bar
Nominal diameter DN 5
Power Supply 24 VAC
Pressure Medium pressure
Temperature 80 °C
Weight 0.70 kg

Datasheet download

Download PDF

Two-way solenoid valve for controlling water flow. The valve is closed when de-energized and opens when powered. We recommend using dirt filters before the valve.

Features:

  • two-way solenoid valve
  • normally closed (NC)
  • DN 5 / internal thread
  • Kv 0.54 m3/h
  • operating pressure 0-800 kPa
  • suitable for gaseous and liquid media that do not corrode the materials used (body - brass, internal parts - stainless steel, seal - EPDM rubber)
  • medium temperature max. 80 °C
  • switching time max. 1s
  • protection class IP 54


The valve is supplied including a power coil and connector.
