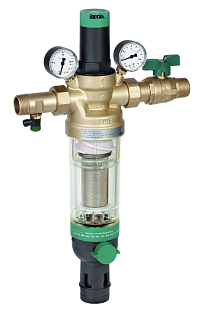

The Honeywell HS10S-11/4AC domestic water filtration station for drinking water includes a 50 μm fine mesh. The transparent plastic bowl has a maximum inlet pressure of 16 bar and a maximum media temperature of 30 °C. Its very compact design is due to the integration of a pressure reducing valve, a 50 μm fine filter (for capturing mechanical impurities), and a non-return valve (which allows the mesh to be rinsed) into a single device.

The filter is equipped with the patented “Double spin” technology, which causes water to circulate around the filter mesh. The circulation of water results in the flushing of impurities located at the top of the filter.

Features

• 50 μm fine mesh
• connection size 11/4" (DN 32)
• min. operating pressure 1.5 bar
• max. inlet pressure with transparent bowl 16 bar
• outlet pressure 1.5-6 bar
• max. media temperature 30 °C
• designed for drinking water
• installation in horizontal piping with the bowl facing downwards
• “Double spin” technology
• clear plastic bowl allows easy inspection of contamination
• uninterrupted supply of filtered water even during mesh rinsing
• easy replacement of the filter mesh and bowl
• DVGW, SVGW certifications
