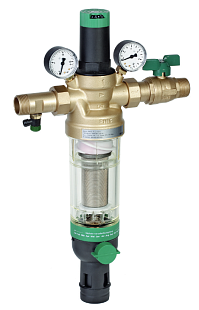

The Honeywell HS10S-11/4AD domestic filtration station for drinking water features a 200 μm fine mesh. The transparent plastic bowl has a maximum inlet pressure of 16 bar and a maximum medium temperature of 30 °C. Its very compact design is achieved by integrating a pressure reducing valve, a 200 μm fine filter (for capturing mechanical impurities), and a check valve (which allows the mesh to be flushed) into a single device.

The filter is equipped with the patented “Double spin” technology, which causes the water to circulate around the filter mesh. The circulation of water results in the washing away of impurities located in the upper part of the filter.

Features

• 200 μm fine mesh
• connection size 11/4" (DN 32)
• min. working pressure 1.5 bar
• max. inlet pressure with transparent bowl 16 bar
• outlet pressure 1.5-6 bar
• max. medium temperature 30 °C
• designed for drinking water
• installation in horizontal piping with bowl facing downwards
• “Double spin” technology
• clear plastic bowl allows easy inspection of contamination
• uninterrupted supply of filtered water even during mesh flushing
• easy replacement of filter mesh and bowl
• certificates DVGW, SVGW
