The illuminated sign is used to alert individuals to an increase in the concentration of monitored toxic gas, for example, in garages, boiler rooms, or storage areas. More information
Out of stock - can be requested
| Cable length | 1.5 m |
| Dimensions (H x W x D) | 725 x 195 x 56 |
| Power Supply | 230 V |
| Side of inscription | Double-sided |
| Temperature | -10...40 °C |
| Weight | 2.00 kg |
Catalog sheet download

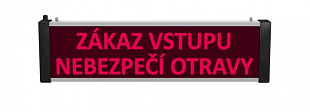

Download PDFThe SVN 722/2 LED serves as one of the possible alarm outputs for detection systems. When the concentration of a monitored toxic gas exceeds a health-threatening level, the detection system supplies 230V AC voltage, thereby illuminating the warning sign "No Entry, Poisoning Hazard".
The body of the SVN 720 is made of an aluminium profile with an anodized surface finish, red (translucent) and silver (opaque) plexiglass walls, and black plastic side panels.
The LED warning sign can be mounted both indoors and outdoors in garages, boiler rooms, and warehouses. Thanks to its IP 54-rated cover, the LED warning sign can be left in the sun without damage from UV radiation or in the rain within the reach of fire sprinklers. You can mount the sign using a bracket on the wall, eyelets, or cables. All mounting materials are included in the package.
Electrical connection is provided by a 2x0.75 mm² cable - 1.5 m (also included in the package).
