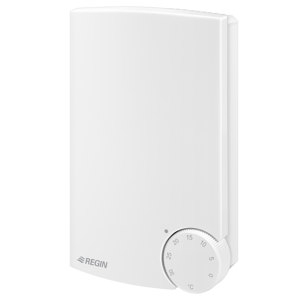

Electric Controller with PI Control Regin PULSER-M (PULSER-M)

Product code: PULSER-M
EAN : 4251724240999
Manufacturer code: PULSER-M
Warranty: 2 years

Electric heating controller Regin PULSER-M with built-in PI controller and sensor. Designed for single-phase or two-phase electric heating. Power supply 230–400 VAC. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

IP Rating	IP 20
Power Supply	400 VAC, 230 VAC
Weight	0.33 kg

Installation instructions download

Download PDF

Data sheet - ENG download

Download PDF

The electric heating controller Regin PULSER-M is a wall-mounted controller with a built-in sensor and PI control, designed for electric heating coils, radiators, or panels. The device uses time-proportional triac control with a variable on/off ratio ranging from 0-100%.

PULSER-M can operate with an internal sensor or external sensors (main, min./max. limitation). It also offers a night setback function and automatic selection of P or PI mode according to system dynamics. The controller switches the entire load on and off in an ON/OFF manner and eliminates interference by switching at zero crossing.
