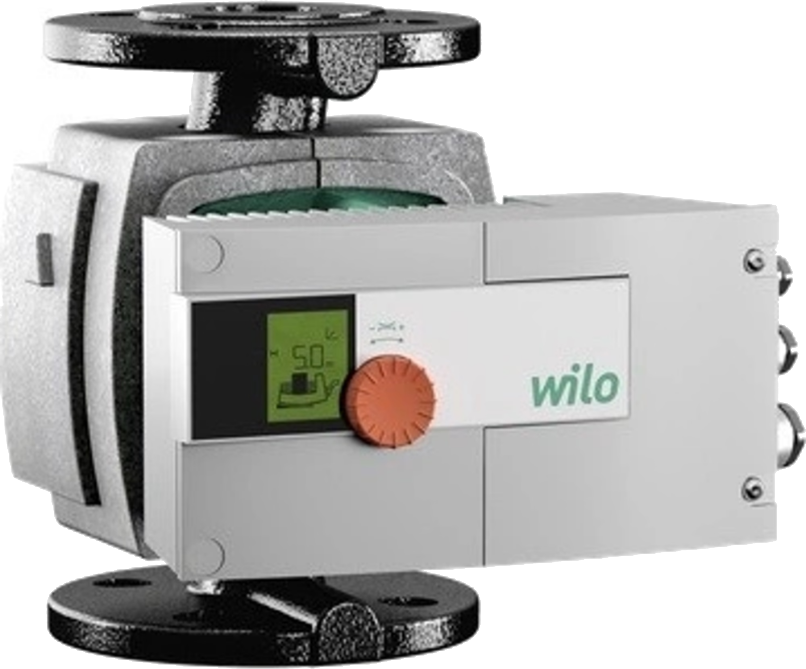

The Wilo Stratos 65/1-16 pump is a highly efficient circulation pump designed for heating and cooling systems. The pump is available in a flange design PN6/10. It features simple operation via the "Red Button" and a display on the pump. The pump is also compatible with IF modules to support various communication protocols and functions. It is suitable for both industrial and residential applications.

Main Features:

• Maximum operating pressure: 10 bar
• Maximum delivery head: 16 m
• Maximum pumping capacity: 52 m³/h
• Minimum and maximum medium temperature: -10 °C to 110 °C
• Energy Efficiency Index (EEI): 0.20

Motor Parameters:

• Rated current: 6.4A
• Minimum and maximum speed: 3400 rpm
• Power consumption: 1450 W
• Insulation class: F
• Protection class: IPX4D

Materials:

• Pump casing: EN-GJL-200
• Impeller: PPE-GF30
• Shaft: 1.4122
• Bearings: carbon, metal impregnated

Dimensions and Weight:

• Pipe connection on discharge and suction: Flange DN65 PN6/10
• Construction length: 340 mm
