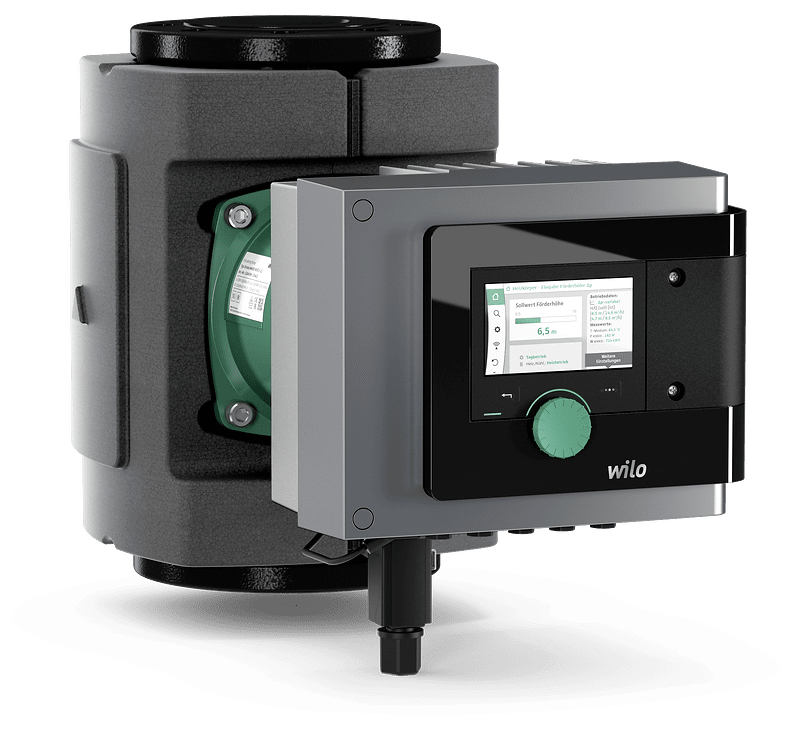

The Stratos MAXO series smart circulation pumps from Wilo are among the intelligent pumps of the future. The electronic display with an intuitive user interface offers simple connection and pump control. Innovative control functions and a combination of the latest sensor technology provide maximum efficiency and energy savings. Thanks to bidirectional connectivity, the pump can be remotely communicated with via a smartphone or tablet, allowing data to be obtained even from hard-to-reach places. The pump can be used in hot water heating systems, air conditioning units, closed cooling circuits, and industrial circulation devices.

Pump Features

• High system efficiency
• Reliability and long lifespan
• Energy savings
• Quick installation
• Simple commissioning
• Colour graphic display with single-button control (Green Button)
• Intuitive user interface
• Bidirectional connectivity, remote control

Functions

• Recording of heat and cold quantities
• Automatic pump shutdown upon detecting zero flow
• Automatic, external, or manual switching between heating and cooling operation
• Setting of pump performance limits
• Dual pump operation mode – parallel operation
• Storage of pump settings and subsequent restoration (3 restore points)
• Fault or warning notifications
• Ventilation for automatic rotor space venting
• Automatic attenuation mode
• Automatic unblocking function and integrated motor protection
• Dry run detection

Display Information

• Control method
• Set value
• Flow rate
• Temperature
• Power consumption
• Electricity consumption
• Active functions (e.g., STOP, No-flow Stop)

Areas of Application

Contents of Delivery

• Pump
• Optimised Wilo-Connector for faster power connection
• 2× cable gland M16 × 1.5
• Thermal insulation – two-piece
• Brief installation and operation manual

Seals are not included in the package.
