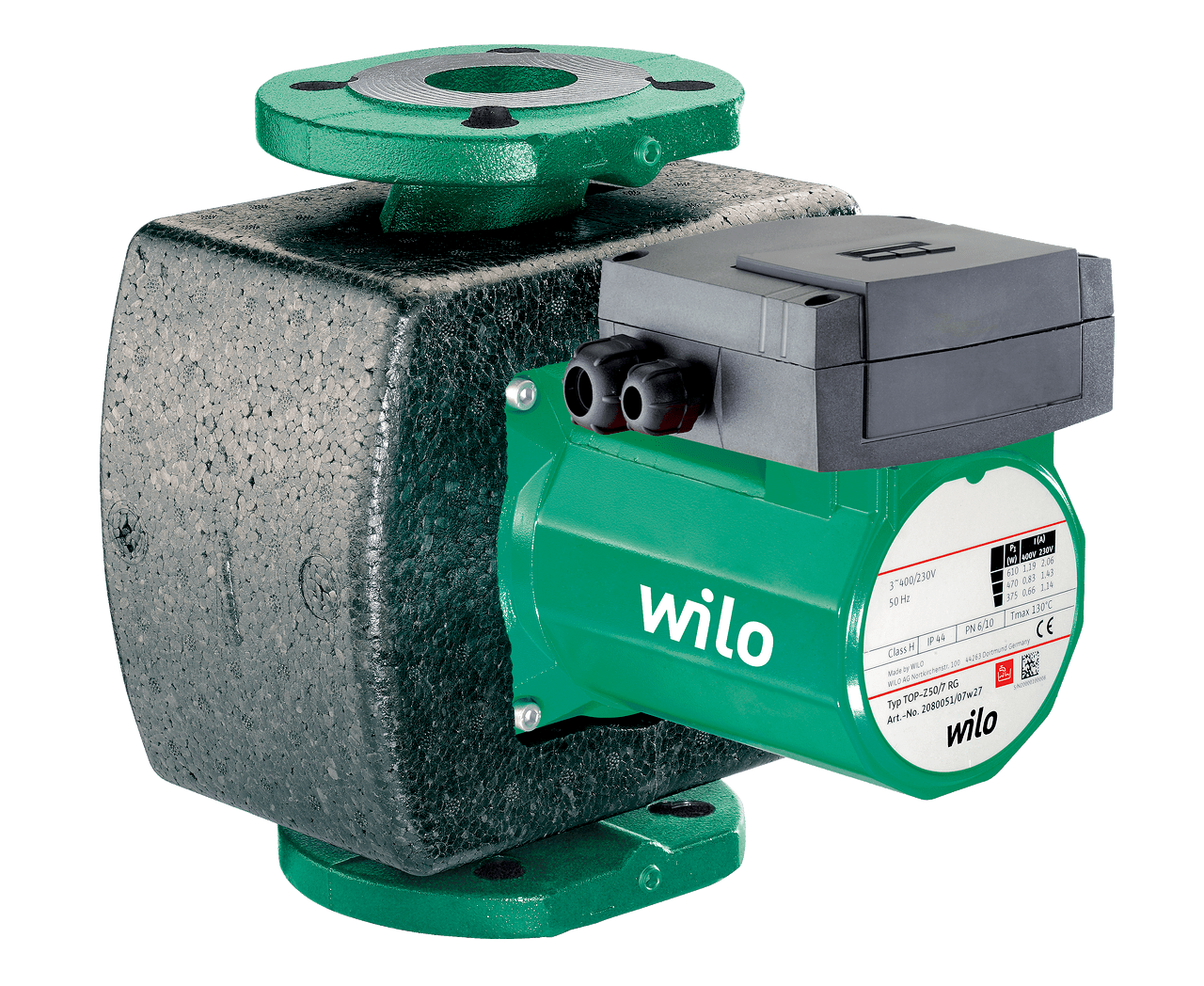

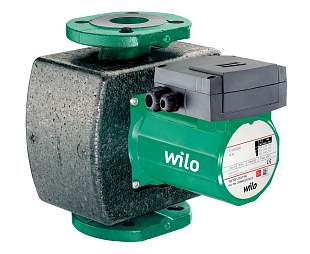

Electronic Circulating Pump Wilo TOP-Z 65/10 400 V (2175527)

Electronic Circulating Pump Wilo TOP-Z 65/10 400 V (2175527)

Electronic Circulating Pump Wilo TOP-Z 65/10 400 V (2175527)

WILO
  • Product code: 2175527
  • EAN : 4048482742816
  • Manufacturer code: 2175527
  • Warranty: 2 years

Electronic circulation pump Wilo TOP -Z 65/10 DM 400 V. Designed for the circulation of drinking water. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 4 428,60
Price excluding VAT € 1 830,00
Price with VAT 21 % € 2 214,30
− +

Trustpilot

Parameters and catalogs

Building length 340 mm
Connection Type Flange
Liquid temperature 0...80 °C
Power Supply 400 VAC
Pressure PN 6, PN 10
Pump bore DN 65
Pump connection size DN 65
Pump flow rate 42.7 m3/h
Pump head 8.7 m
Weight 29.30 kg

Catalog sheet download

Download PDF

Wet-running circulation pump WILO TOP-Z series for drinking water systems.

Application

Drinking water systems in industry or in building services. The TOP-Z pump is exclusively designed for drinking water.

Characteristics

Wilo TOP-Z 50/7 characteristics

Features

  • Supplied as standard with thermal insulation.
  • Performance adjustment via three speed levels.

Materials

  • Pump casing made of stainless steel/red bronze and grey cast iron.
  • Impeller made of plastic.
  • Shaft made of stainless steel/ceramic.
  • Bearings made of carbon, impregnated with synthetic resin.

Scope of Delivery

  • Pump.
  • Thermal insulation.
  • Seals.
  • Installation and operating instructions.
