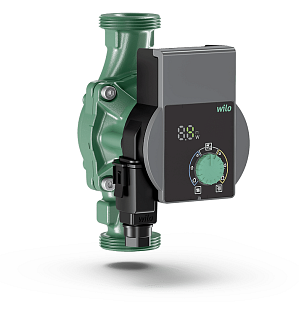

Electronic Circulating Pump Wilo Yonos PICO1.0 30/1-8 (4248091)

Product code: 4248091
EAN : 4062679182100
Manufacturer code: 4248091
Warranty: 5 years

Electronic circulation pump Wilo Yonos PICO1.0 30/1-8. For use in heating systems. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
3.3 workdays € 7,02

Bpost HD (Home Delivery):
3.2 workdays € 11,12

BPost - PP (Pick-up Point):
3.1 workdays € 10,39

FedEx Priority:
1.7 workdays € 17,18

DHL Express:
1.1 workdays € 22,99

DHL Express: 1.1 workdays, € 22,99
More than 5 pcs in stock

Parameters and catalogs

Building length	180 mm
Connection Type	External thread
Liquid temperature	-10...95 °C
Power Supply	230 VAC
Pressure	10 bar
Pump bore	DN 32
Pump connection size	2"
Pump flow rate	4.4 m³/h
Pump head	8 m
Weight	2.32 kg

Instructions download

Download PDF

Catalog sheet download

Download PDF

The Wilo Yonos PICO1.0 circulation pump is the basic model in a range of energy-saving and highly efficient pumps. The minimum power consumption of the pump is just 4W! The Yonos Pico pump is used in all standard heating systems, air conditioning units, and industrial circulation devices. Other suitable applications for the pump include family homes and semi-detached houses. The pump allows for both manual and automatic operation (see below).

The pump complies with the ErP directive.

Characteristics

Differences between Yonos PICO and the new Yonos PICO 1.0

Manual restart has been replaced by automatic, thus the manual unblock button has been removed.
The pump can no longer be set to one of three constant speeds. Instead, the pump is set to the pump venting modes.
The pump no longer measures flow. The pump display now only shows power consumption, head setting, and error messages.
