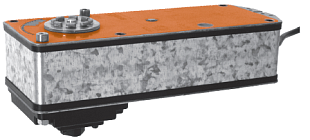

The actuator is designed for 2- and 3-way ball valves, ensuring secure closure in the event of a power failure. This model includes an auxiliary switch with adjustable signal angles and offers the option of manual operation using a handle.

Main Features

• Power Supply: AC 230 V
• Control Mode: open-close
• Default Positions: ARF230-S (NC), ARF230-S-O (NO)
• Manual operation with a hand crank

Technical Specifications

• Torque: 15 Nm
• Rotation Angle: 95°
• Lifespan: min. 60,000 cycles
• Noise Level: motor max. 45 dB, spring approx. 62 dB
• Protection: IP54, class II
• Operating Temperature: -30 °C to +50 °C

The ARF230-S is designed for easy mounting on ball valves with the possibility of installation in various positions. It provides high reliability and safety for applications in HVAC systems.
