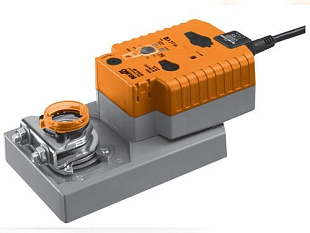

Belimo GK actuator for HVAC dampers with electric emergency function based on the capacitor principle.

Actuator Functions

In the event of a power interruption, the damper is rotated to its default position by the energy stored in the capacitors. The principle of the emergency function is therefore different from traditional spring-return actuators.

• The actuator can be operated manually using a locking button.
• The rotation direction switch changes the actuator's operating direction during normal operation.
• The "emergency position" switch allows you to set the desired emergency position.

Capacitor Charging

The actuator requires a certain amount of time to charge to operational capacity. The charging time of the actuator depends on the duration of the power disconnection. However, the charging time does not exceed 20 seconds, which corresponds to a power outage of more than 10 days.

The actuator is delivered from the factory completely discharged. For initial commissioning, it requires approximately 20 seconds of charging for the capacitors to reach the required voltage level.

Features

• The actuator is protected against overload, and no end stops are required.
• Simple installation on the damper shaft using a universal bracket.
• The actuator can be equipped with auxiliary switching contacts S...A or a potentiometer.

Conventional Operation: The actuator is controlled by a DC 0-10V signal and moves to the position specified by the control signal. The voltage at terminal U serves to display feedback from 0...100%.

MP-BUS Operation: The actuator receives a digital control signal from the master controller via MP-Bus and moves to the specified position. Terminal U serves as a communication interface and does not send an analogue measuring voltage.

Connectivity with the LOXONE Smart Home System
