Emergency Solenoid Gas Valve PEVEKO EVH 1032.22/L

  • 2 variants

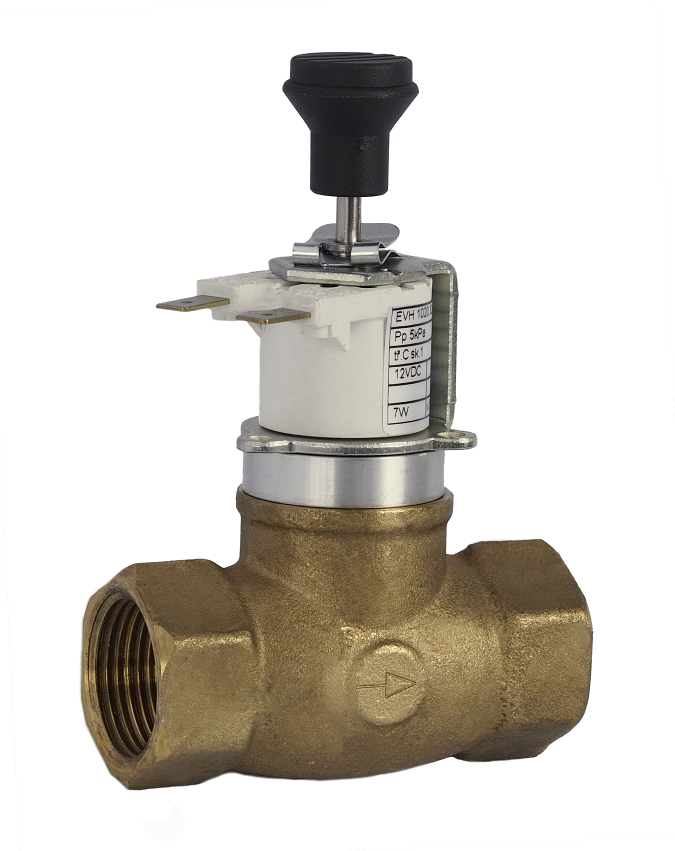

Emergency Solenoid Gas Valve PEVEKO EVH 1032.22/L

PEVEKO
  • Product code: 55772.22
  • Manufacturer code: EVH 1032.22/L
  • Warranty: 2 years

Emergency solenoid gas valve PEVEKO series EVH More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 171,16
Price with VAT 21 % € 207,10

Product variants

+

Parameters and catalogs

Atex No
Connection size 1 1/4"
Connection Type Internal thread
Function Normally open
Gasket NBR
IP Rating IP 00
Medium DN 13
Medium Temperature 80 °C
Nominal diameter DN 30
Power Supply 24 VDC
Pressure Low pressure
Weight 0.90 kg

Catalog sheet download

Download PDF

The emergency solenoid valves of the EVH series are designed for closing medium and low-pressure pipeline systems with manual opening. Closing is achieved via an electric impulse, where the coil is de-energized during operation. However, it can also be closed manually.

Features

  • can be installed in any position
  • body made of high-quality brass and internal parts of stainless steel
  • easy manual opening and closing capability
