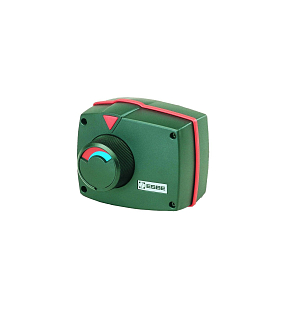

ESBE 66M 230V 3P Actuator (12001500)

ESBE 66M 230V 3P Actuator (12001500)

ESBE 66M 230V 3P Actuator (12001500)

ESBE
  • Product code: 12001500
  • Manufacturer code: 12001500
  • Warranty: 2 years

Reliable ESBE rotary actuator for motorizing mixing and diverting valves in heating systems, with simple 3-point control. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Control 3-point
Power Supply 230 VAC
Setup time 240 s
Torque 6 Nm
Weight 0.00 kg

The ESBE 66M 230V 3P (12101500) actuator is a rotary drive for motorizing ESBE valves in heating applications where precise and repeatable rotation within a 90° range is required.

3-point control (open / close / stop) easily integrates into standard controls. The variant with code 12101500 corresponds to the ESBE ARA600 designation and is supplied with a built-in auxiliary switch ARA600(12101900) .

Main Features

  • Rotary actuator for ESBE valves – suitable for mixing and switching
  • 3-point control (3P) for easy connection to regulation
  • Stable torque for reliable valve adjustment
  • Built-in auxiliary switch (version according to manufacturer's note)

Technical Specifications

Product Code 12101500
ESBE Designation ARA600
Power Supply 230 VAC
Control 3-point (3P)
Torque 6 Nm
Running Time 90° 240s
Design with built-in auxiliary switch
