ESBE ARA691 Actuator 230 V (12101500)

ESBE ARA691 Actuator 230 V (12101500)

Product code: 12101500
EAN : 7330193035903
Manufacturer code: 12101500
Warranty: 2 years

Actuator for VRG series mixing valves. Power supply 230V, 3-point, running time 120/240/480/1200s. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

Auxiliary contact	0...5 V
Control	3"
Damper size	DN 50
Emergency function	0...25 mbar
Power Supply	230 VAC
Setup time	480 s, 240 s, 1200 s, 120 s
Torque	6 Nm
Weight	0.48 kg

Datasheet download

Download PDF

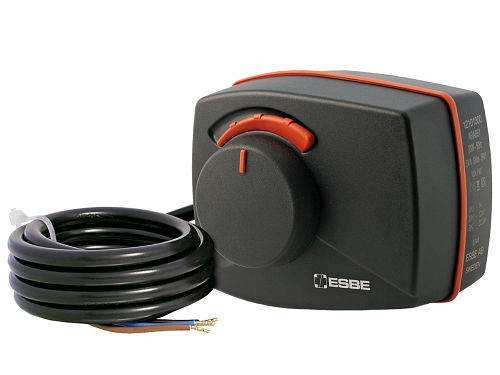

The ARA 600 series actuator is designed for motorizing rotary mixing valves with dimensions DN15-50. The actuator has an operational angle of 90° and the valve can be manually operated if necessary, thanks to the pull-out knob on the front of the actuator. The actuator is equipped with a 1.5m long cable.
The actuator is supplied including a mounting kit for ESBE VRG valves.
