Flange SYR HWS 2000 DN 32 (2000.32.015)

  • 3 variants

Flange SYR HWS 2000 DN 32 (2000.32.015)

SYR
  • Product code: 2000.32.015
  • EAN : 4017905034067
  • Manufacturer code: 2000.32.015
  • Warranty: 2 years

Universal solution for connecting water filters and stations. This flange is made from high-quality brass and is available in various sizes (DN 20, 25, and 32). More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 309,81
Price excluding VAT € 220,19
Price with VAT 21 % € 266,43

Product variants

+

Parameters and catalogs

Connection size DN 32
Connection Type External thread
Max. operating pressure 16 bar
Max. water temperature 30 °C
Medium Drinking water
Weight 0.85 kg

Catagal leaf de download

Download PDF

Technical parameters download

Download PDF

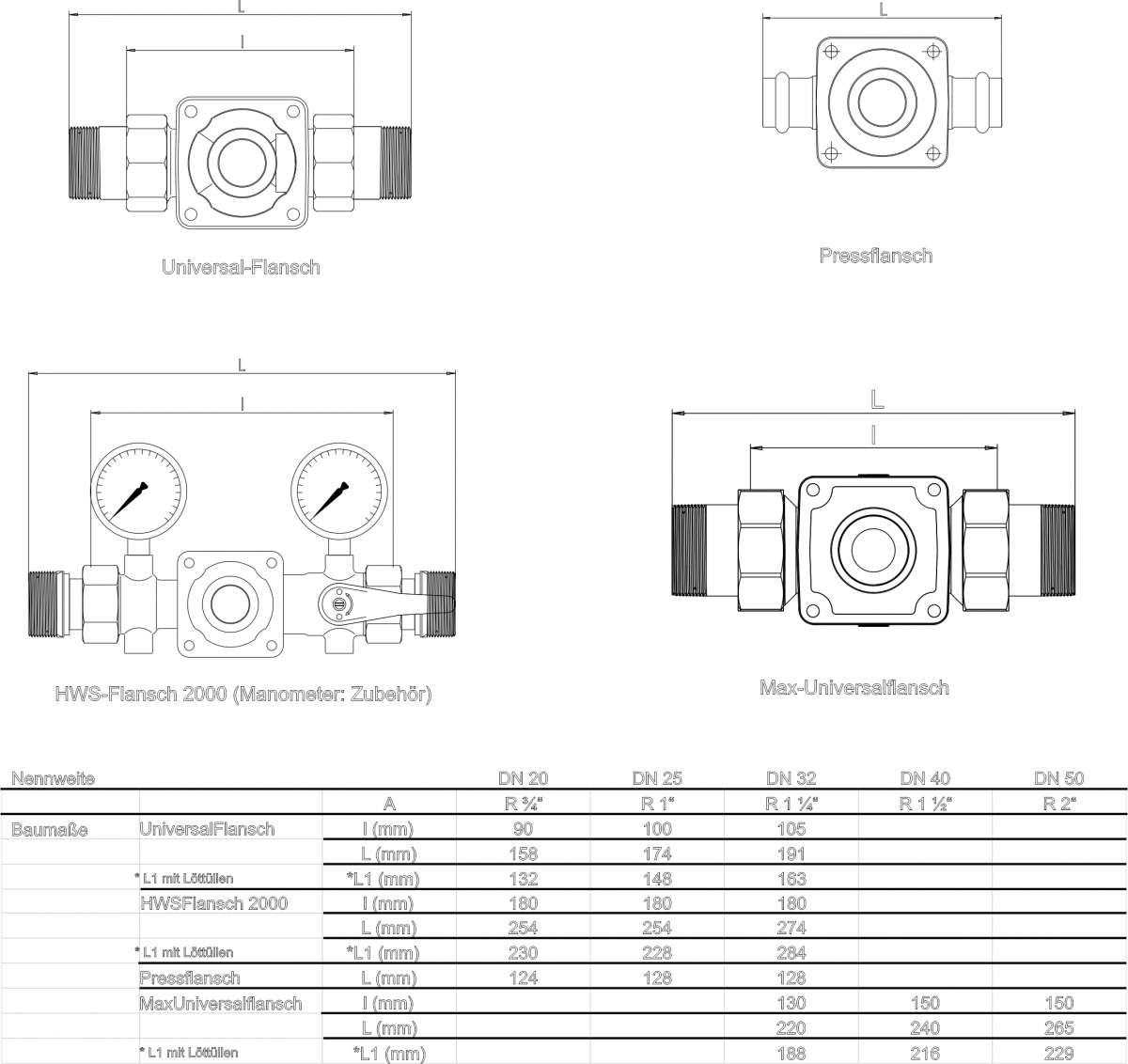

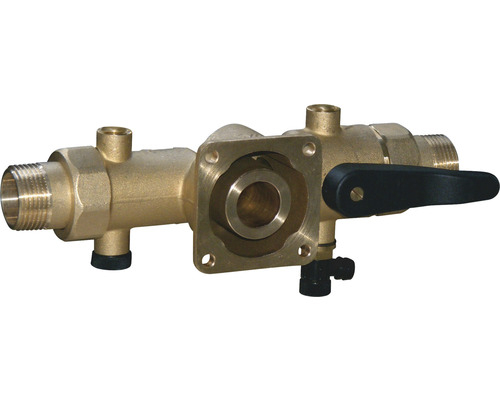

The HWS Flange 2000 is a versatile solution for connecting water filters and stations. This flange is made from high-quality brass and is available in various sizes (DN 20, 25, and 32). With double-sided threaded couplings and integrated elements, it is ideal for complex water installations.

Technical Specifications

  • Operating pressure: max. 16 bar
  • Operating temperature: max. 30 °C
  • Installation position: any
  • Medium: drinking water
  • Product number: 2000...

Key Features

  • Double-sided threaded couplings
  • Integrated check valve with testing device
  • Ball valve for maintenance
  • Main line drain
  • Connections for inlet and outlet pressure gauges

Installation and Use

  • Suitable for horizontal and vertical installations
  • Specifically designed for use with Drufi+ filters
  • Made from durable brass
