The hydrogen detector is used to measure the values ​​of the detected gas in the air and provide early warning of a dangerous (toxic) concentration.

It does not have its own light and sound signaling. The E2670 series detectors are an intelligent solution for modern applications with ModBus RS485 communication and two 4-20mA/0-10V analog outputs . They are also equipped with two switching relays that will switch the connected devices after recording two preset values.

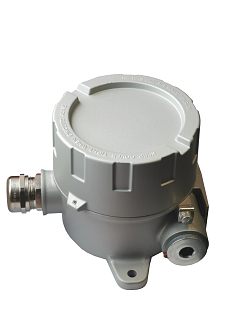

Made in a robust aluminum design with IP66 protection , resistant to mechanical damage. Rigid, tough, resistant to low and high temperatures, harmless to health. Suitable for use in ATEX zones 2 and 22 . More details about ATEX in the Declaration of Conformity and Technical Data Sheet.

Each detector is factory-calibrated to default values ​​(described in the manual). According to the needs of the user, the detector can be set to a measuring range of 0...100% LEL. The law states that recalibration must be carried out at least once every 12 months. Calibration can only be performed by a person certified by the manufacturer.

The recommended coverage area with one sensor is 80-120 m ² , 5-6 m radius.

Do not hesitate to contact us for recalibration!

The detector is designed to detect:
Acetylene / Butane / Propane / Hydrogen / Methane
Factory calibrated to Hydrogen (To set to a different gas, provide information in the order note)

Properties:

• Sensitive and stable detection
• Long service life of the semiconductor sensor
• Wall mounting, IP66 protection
• ATEX zones 2, 22
• Two analog outputs 4-20mA/0-10V
• ModBus RS485 digital communication
• 2 x switching relays
