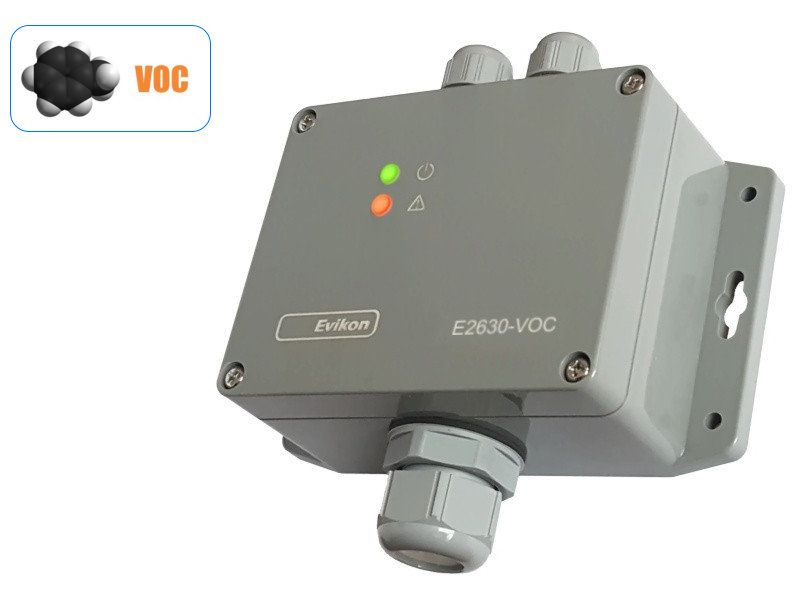

The Evikon E2630-VOC is a volatile organic compound (VOC) detector designed to detect a wide range of volatile substances such as acetone, benzene, ethanol, ethyl acetate, toluene, and xylenes. This device uses a semiconductor sensor that provides reliable and stable measurements, making it ideal for monitoring spaces where VOC levels need to be controlled.

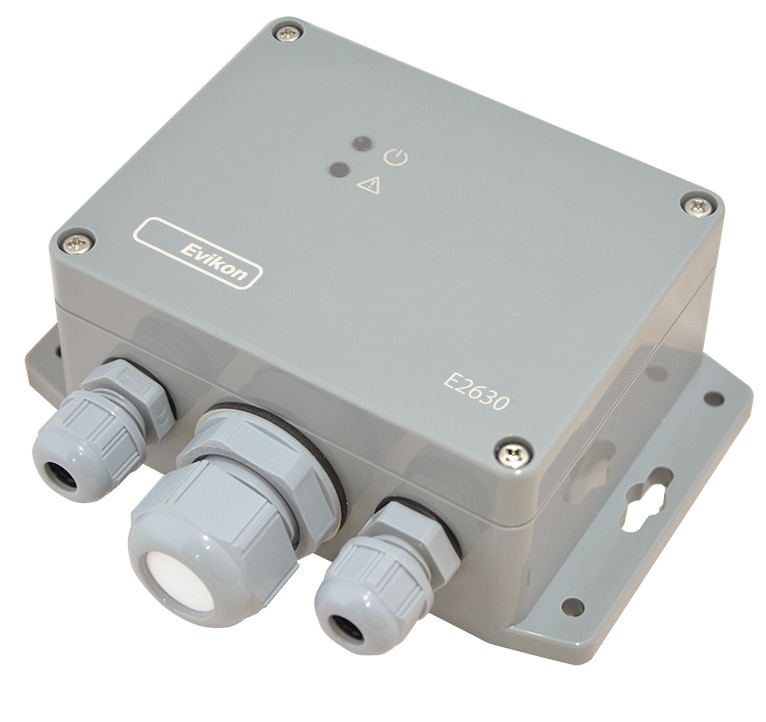

The device is housed in a wall-mounted enclosure with an IP65 protection rating, ensuring its resistance to dust and water. Additionally, it features visual and acoustic alarms for early warning of increased VOC concentrations. The E2630-VOC is equipped with two SPDT relay outputs, allowing easy integration with ventilation and alarm systems.

Common Applications:

The E2630-VOC detector is primarily set up for detecting petrol vapours, making it ideal for use in garages, petrol stations, fuel storage facilities, and other areas where the presence of petrol vapours is a risk. Thanks to its sensitivity and quick response, it can promptly identify dangerous levels of vapours, ensuring the safety of workers and protecting property from potential risks associated with fuel gas leaks.

Calibration Protocol

Each Evikon gas detector package includes a factory calibration protocol. The calibration protocol is in English. Gas concentration measurements are influenced by operating temperature and humidity, so calibration during the detector's manufacture is carried out with higher safety in mind.

Key Features:

• Detected substances: Acetone, benzene, ethanol, ethyl acetate, toluene, xylenes, etc.
• Can respond to: Flammable gases, cleaner vapours, refrigerants, etc.
• Sensor type: Metal oxide semiconductor sensor with diffusion sampling.
• Measurement range: 0...100% LEL with a resolution of 0.1% LEL.
• Two-stage detection
• Response time: Less than 120 seconds with signal update every second.
• Alarms: Flashing LED and siren (85 dB).
• Recommended recalibration interval: 6-12 months
• Expected sensor lifespan: > 5 years
• Avoid strong mechanical shocks, vibrations, or electromagnetic interference (EMI). Also avoid exposure to corrosive gases or products containing silicone.

Specifications:

• Power supply: 230 VAC
• Consumption: < 2 VA
• Max load of SPDT relay outputs: 250 VAC / 30 VDC, 5 A max
• Operating conditions: -40...+70 °C, <95% RH, pressure 0.9...1.1 atm
• Enclosure dimensions: H140 × W145 × D55 mm
• Protection class: IP65

This detector is an ideal choice for monitoring VOCs in both hazardous and safe environments, offering long-term reliability with minimal maintenance requirements, making it suitable for a wide range of applications.
