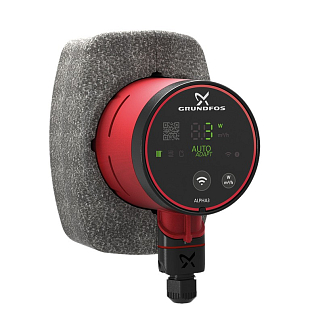

Grundfos ALPHA3 25-60 130 circulation pump with built-in Bluetooth, AUTOADAPT function, and control via the GO Remote app. Energy Efficiency Index (EEI) 0.17, max. head 6 m. More information
This product is no longer available, as it has been replaced with a new model.
View the new model| Building length | 130 mm |
| Connection Type | Internal thread |
| Liquid temperature | 2...110 °C |
| Power Supply | 230 VAC |
| Pressure | 10 bar |
| Pump bore | DN 25 |
| Pump connection size | 1 1/2" |
| Pump flow rate | 1.94 m3/h |
| Pump head | 6 m |
| Weight | 2.00 kg |
Catalog sheet download
Download PDFThe Grundfos ALPHA3 25-60 130 is a modern circulator pump with an encapsulated rotor and built-in Bluetooth interface. Control and settings are conveniently managed via a smartphone using the Grundfos GO Remote app.
The pump supports the AUTOADAPT function for radiator and underfloor systems as well as combined systems. It features dry-running protection, automatic night setback, and is compatible with the Grundfos GO Balance app for hydronic balancing.
| Body Material | Cast Iron (EN-GJL-150) |
| Impeller | Composite PES/PESU |
| Max. Operating Pressure | 10 bar |
| Ambient Temperature Range | 0...40 °C |
| Energy Efficiency Index EEI | 0.17 |
| Protection Rating | IPX4D |
| Insulation Class | F |
