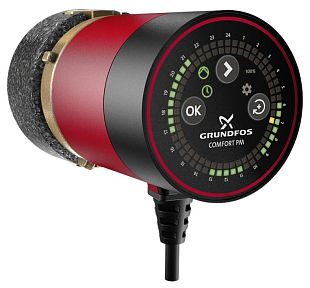

Grundfos COMFORT 15-14 BDT PM Circulating Pump (99812350)

Grundfos COMFORT 15-14 BDT PM Circulating Pump (99812350)

GRUNDFOS
  • Product code: 99812350
  • EAN : 5713834634352
  • Manufacturer code: 99812350
  • Warranty: 2 years

Circulation pump for the circulation of hot water in family houses and in small heating, cooling, and air conditioning systems. More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Parameters and catalogs

Building length 80 mm
Cable length 1.5 m
Connection Type External thread
Liquid temperature 2...95 °C
Power Supply 230 VAC
Pressure 10 bar
Pump bore DN 15
Pump connection size 1/2"
Pump flow rate 0.5 m3/h
Pump head 1.4 m
Weight 1.05 kg

Catalog sheet download

Download PDF

Domestic circulation pump for the circulation of hot water in family homes inhabited by one or two families and for use in small heating, cooling, and air conditioning systems. It is suitable for lead-free drinking water up to a temperature of 90 °C. The pump is driven by a single-phase motor with permanent magnets and is equipped with a digital timer suitable for domestic systems with hot water tanks or systems with plate heat exchangers for water heating. The timer monitors and controls the operation of the pump to ensure energy costs are as low as possible. Continuous operation of the pump can be set as needed so that the pump starts at any time, or to ensure 24-hour shower and tap water availability.

Advantages

  • Easy and quick commissioning thanks to a 1.5 m long cable with a power socket
  • Adjustment of pump operating times using a digital timer
  • The pump rotor is easily accessible and easy to clean.
  • Quiet operation - bearings are lubricated by liquid.
  • Static seal prevents water leakage.
  • Maintenance and cleaning are very easy thanks to the detachable pump head.

Features

  • Power supply 230 VAC
  • Medium: potable hot water
  • Medium temperature 2...95 °C
  • Protection class IP44
  • Max. operating pressure 10 bar
  • Connection with 1/2" thread
  • Dry run protection.
  • Robust rotor resistant to lime.
  • Corrosion-resistant brass casing.
