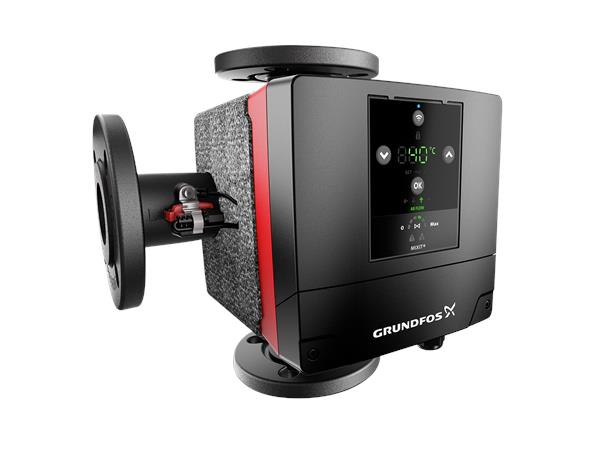

Grundfos MIXIT 50-40 L F mixing circuit system with MAGNA3 pump. More information
Out of stock - can be requested
| Building length | 330 mm |
| Connection Type | Flange |
| Liquid temperature | 0...90 °C |
| Power Supply | 230 VAC |
| Pressure | 6 bar, 10 bar |
| Pump bore | DN 50 |
| Pump connection size | DN 50 |
| Pump flow rate | 21.9 m3/h |
| Weight | 17.20 kg |
Data sheet download
Download PDFGRUNDFOS MIXIT is a comprehensive solution for mixed circuits in both heating and cooling systems. The system operates in conjunction with the MAGNA3 pump and offers a solution for the entire mixing node, including all necessary components and the control system. The complete mixing loop is composed of the MIXIT unit and the Grundfos MAGNA3 circulation pump.
.png)
Communication between elements is wireless, and therefore only two power cables are required for the MIXIT system to function.
MIXIT features its own control unit and built-in flow and temperature sensors. This ensures the desired parameters are always met, even at low flow rates.
The system is controlled via an intuitive panel and wirelessly through the Grundfos GO Remote app.
MIXIT can be combined with the DYNAMIC and CONNECT upgrades.
