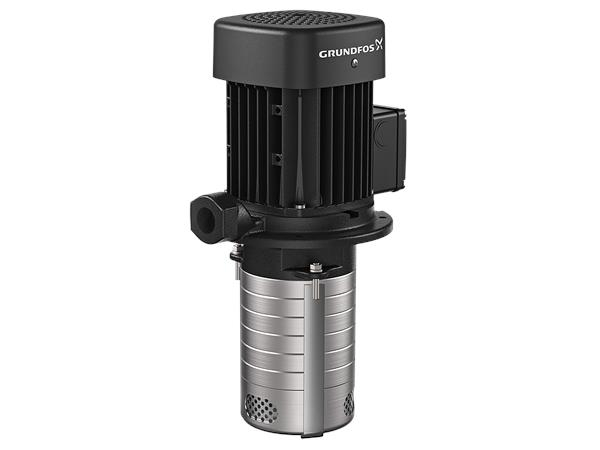

Grundfos MTH 4-4/4 A-W-A-AQQV Multistage Submersible Self-Priming Centrifugal Pump (98993044)

Product code: 98993044
Manufacturer code: 98993044
Warranty: 2 years

Multistage submersible centrifugal pump for vertical installation in tanks, suitable for machine tools, condensate transfer, and industrial processes. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

Connection size	G 3/4"
Connection Type	Internal thread
IP Rating	IP 54
Max. immersion depth	0.199 m
Max. operating pressure	10 bar
Medium Temperature	-10...90 °C
Power Supply	400 VAC, 230 VAC
Pump flow rate	83.3 l/min
Pump head	26.3 m
Weight	15.00 kg

Assembly and operating instructions download

Download PDF

Spare parts catalog en download

Download PDF

Catalog sheet download

Download PDF

Vertical Multistage Submersible Pump with a motor rated at 1.1 kW for pumping liquids in machine tools, transferring condensates, and industrial processes. Designed for installation in a vertical position in tanks, etc. The pump is directly connected to a 3-phase motor.

Pumped Liquid: emulsions and liquids with a density/viscosity close to water. Consider a more powerful motor for higher density or viscosity.

Key Features:

Nominal Flow Rate: 83.3 l/min
Nominal Head: 26.3 m
Liquid Temperature Range: –10...90 °C
Max. Operating Pressure: 10 bar
Discharge Port: Rp 3/4"
Immersion Depth: 199 mm
Materials: casing cast iron EN-GJL-200, impeller stainless steel AISI 304
