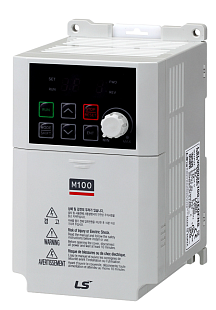

The frequency inverter LSLV M100-00015 from LS Electric is a high-performance device designed for three-phase asynchronous motors with a power of 1.5 kW. This model is designed for a single-phase input of 200~240 VAC and offers output up to three-phase voltage of 200~240 VAC with input voltage, making it an ideal solution for a wide range of industrial applications.

Key Features:

• Support for scalar U/F control or slip compensation, ensuring optimal performance for various applications.
• Input voltage single-phase 200~240VAC
• Output voltage three-phase 200~240VAC
• Output power 3.0 kVA, 7.5 A
• Integrated operator panel and potentiometer for easy control.
• Overload capability of 150% for 1 minute for demanding start-up conditions.
• Output frequency up to 400Hz for high-speed operations.
• Ambient temperature range -10...50 ℃

The technical specification highlights the robust design and advanced features of the frequency inverter, including the JOG function, integrated PID controller, the ability to set prohibited frequencies, and comprehensive motor protection.

Thanks to the possibility of mounting on a DIN rail and integration into automation systems via analogue inputs and RS485 communication interface (in models with communication), the LSLV M100-00015 is a flexible solution for modern industrial applications.
