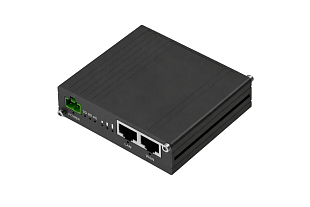

Usage

It is designed for industrial solutions in demanding conditions found in boiler rooms with the SOVIK system, where stable and secure internet connection is required:

• mobile connection to the operator's network (4G/LTE, 3G, 2G),
• network connection via Wi-Fi as an access point,
• ethernet cable connectivity for devices in the local network,
• pre-configured settings for SOVIK Kotelník,
• easy plug & play setup,
• setting phone numbers using the SOVIK device,

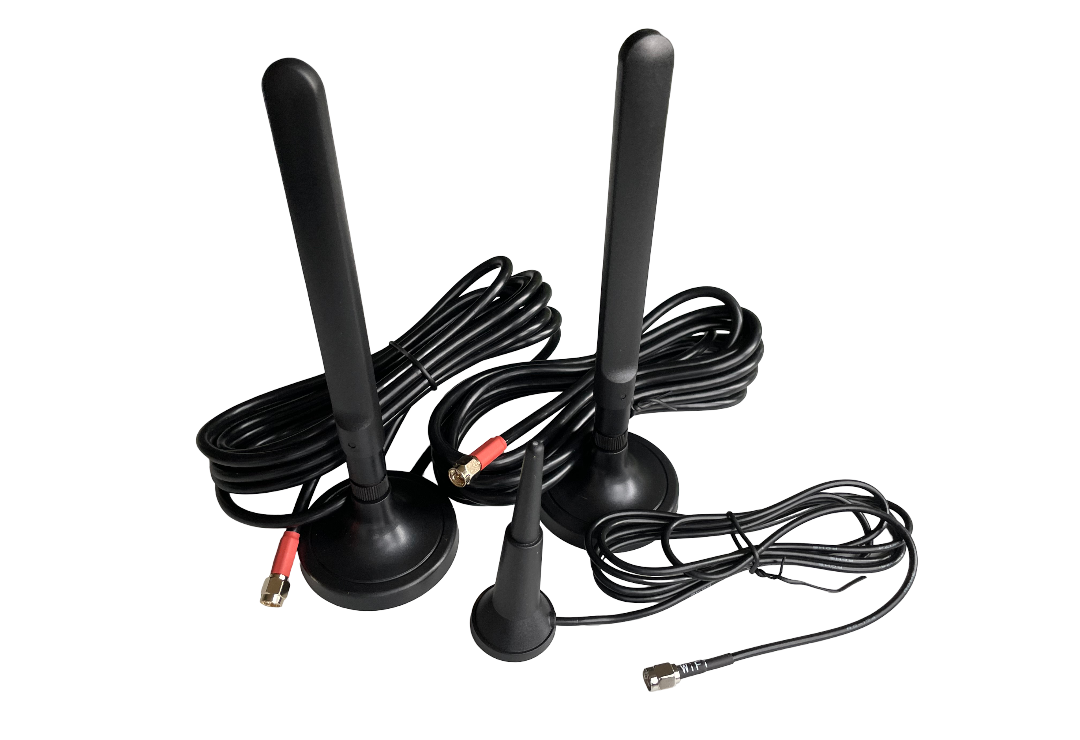

• 3 antennas with a connection length of 1.5 m. 1x antenna for Wi-Fi, 2x antennas for high-quality LTE signal (the second antenna eliminates reflections and improves signal quality)

Key Features

• Mobile Connection – 4G/LTE Cat 4
  • Support for 4G/LTE mobile internet, with backward compatibility to 3G and 2G.
• Dual-SIM and WAN Failover
  • Two SIM card slots with automatic switching in case of signal loss or data limit ensure continuous connection.
• Wi-Fi
  • Built-in Wi-Fi network with the ability to function as an access point for wireless devices.
• Ethernet Ports
  • 2× ports (1× WAN and 1× LAN) allow connection of wired devices and easy integration into an existing network.
• Serial Interface – RS-232 and RS-485
  • Integrated serial ports allow direct connection to industrial devices, PLCs, or meters.
• RutOS – Advanced Firmware
  • Operating system based on OpenWrt offers advanced network functions, VPN, firewall, routing, and support for a range of industrial protocols.
• Remote Management System (RMS)
  • Support for remote device management, monitoring, and updates via the RMS platform.
• Power Supply and PoE
  • The router can be powered by standard DC 9–57 V or via active and passive PoE.
• Robust Design
  • Aluminium casing with IP30 protection and an operational temperature range suitable for industrial environments.

• Dimensions

  • 83 × 83 × 25 mm,

The device is supplied without a SIM card
