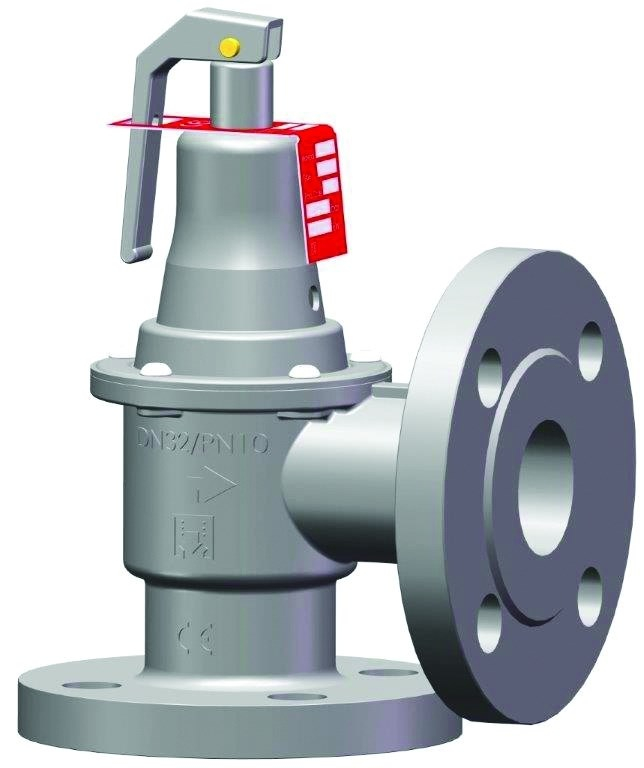

Heating Safety Valve DUCO DN 50x65 4 bar (69F5065.40)

Heating Safety Valve DUCO DN 50x65 4 bar (69F5065.40)
  • 14 variants

Heating Safety Valve DUCO DN 50x65 4 bar (69F5065.40)

DUCO
  • Product code: 69F5065.40
  • Manufacturer code: 69F5065.40
  • Warranty: 2 years

Heating safety valve DUCO in size DN 50 x DN 65 with an opening pressure of 4 bar. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 818,24
Price excluding VAT € 608,61
Price with VAT 21 % € 736,42

Product variants

− +

Trustpilot

Parameters and catalogs

Connection size DN 50
Material Cast iron
Pressure 4 bar
Temperature 120 °C
Weight 4.20 kg

Leaflet download

Download PDF

The safety valve is designed for heating systems and can come into contact with water and glycol mixtures up to a 50% concentration. The valve is equipped with a cap that protects it from unwanted adjustments and tampering. The valve body is made of cast iron, and both the seal and the diaphragm are made of EPDM.

Construction

  1. lever
  2. adjustment screw
  3. indicator label
  4. valve stem
  5. preset spring
  6. stroke limiter
  7. diaphragm
  8. valve seat
  9. valve cone
  10. valve body
  11. valve cap
