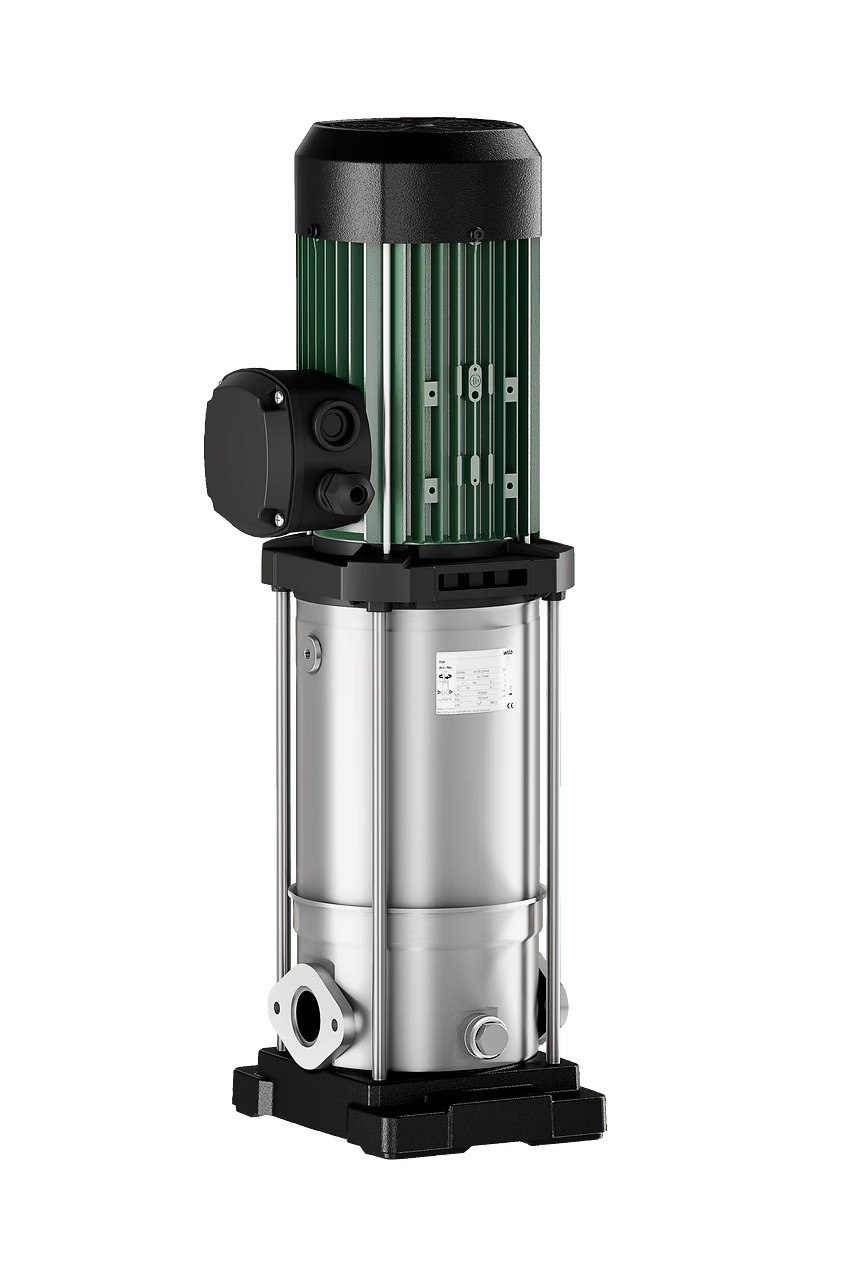

Wilo Medana CV1-L.413-1/E/E/16O is a vertical multistage high-pressure pump with an Inline design, ideal for water supply, pressure boosting, and demanding industrial applications. All hydraulic components in contact with the medium are made of stainless steel, making the pump fully suitable for use with drinking water.

This compact unit is equipped with a three-phase IE3 motor with a power output of 1.85 kW and achieves high efficiency of up to 85.6%. The BQ1EGG mechanical seal, stainless steel impellers, and through-shaft design ensure reliable operation even at medium temperatures up to 120°C. The pump is supplied with connecting bolts and seals for easy installation.

Main Features

• Multistage vertical pump with Inline design
• Fully stainless steel – suitable for drinking water (EPDM)
• High-efficiency three-phase IE3 motor
• Mechanical seal independent of direction of rotation
• Compact and space-saving design
• Operating pressure up to 16 bar, medium temperature up to 120°C
• Integration possible into cooling, washing, and irrigation systems
• Connection via G 1" fittings – easy installation

Technical Specifications
