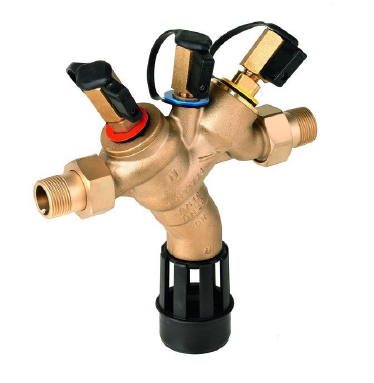

Brass pipeline separator protecting drinking water systems from contamination up to risk class 4 in accordance with ČSN EN1717. More information
Delivery to Belgium (days are avarages)
DHL Express: 8.1 workdays, € 16,94
| Max. flow | 0.72 m3/h |
| Max. operating pressure | 10 bar |
| Max. water temperature | 65 °C |
| Medium | Drinking water |
| Weight | 1.98 kg |
Datasheet download
Download PDFThe pipeline separator is suitable for use in residential, industrial, and commercial construction. It protects drinking water systems from contamination caused by back pressure, backflow, or back siphonage of utility water into the drinking water network. This is most commonly used when combining water intake from the mains and a well.
Compact design with simple servicing and easy access to all internal components. The special technical design prevents water "standing." The separator is characterized by low pressure loss and high flow rate with low noise level (class 2). It is certified for use in drinking water systems and complies with KTW recommendations.
ConstructionInside, the separator is divided into three pressure zones. In zone 1, the pressure is greater than in zone 2, which is again greater than in zone 3. If the pressure difference between zones 1 and 3 drops to 0.14 bar, the drain valve in zone 2 opens, and both check valves close. Zone 2 is thus separated from zones 1 and 3, and the water from zone 2 is discharged into a pressureless waste.
|
Reduction Valve
A / B |
Testing Device
|
Testing Device
|
Water Valve with Backwash
|
