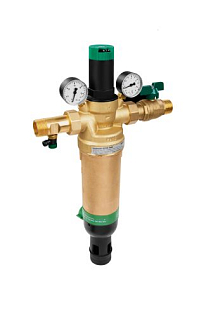

The Honeywell HS10S-3/4AAM domestic water filtration station for drinking water includes a 100 μm fine mesh. Brass housing with a maximum inlet pressure of 25 bar and a maximum medium temperature of 70 °C. Very compact design due to the integration of a pressure reducing valve, a 100 μm fine filter (for capturing mechanical impurities), and a check valve (which allows the mesh to be flushed) into one device.

The filter is equipped with the patented “Double spin” technology, which causes the water to circulate around the filter mesh. The circulation of water results in the washing away of impurities located in the upper part of the filter.

Features

• 100 μm fine mesh
• connection size 3/4" (DN 20)
• min. operating pressure 1.5 bar
• max. inlet pressure with transparent housing 25 bar
• outlet pressure 1.5-6 bar
• max. medium temperature 70 °C
• designed for drinking water
• installation in horizontal piping with housing facing downwards
• “Double spin” technology
• brass housing for higher pressure and temperature
• uninterrupted supply of filtered water even during mesh flushing
• easy replacement of filter mesh and housing
• certificates DVGW, SVGW
