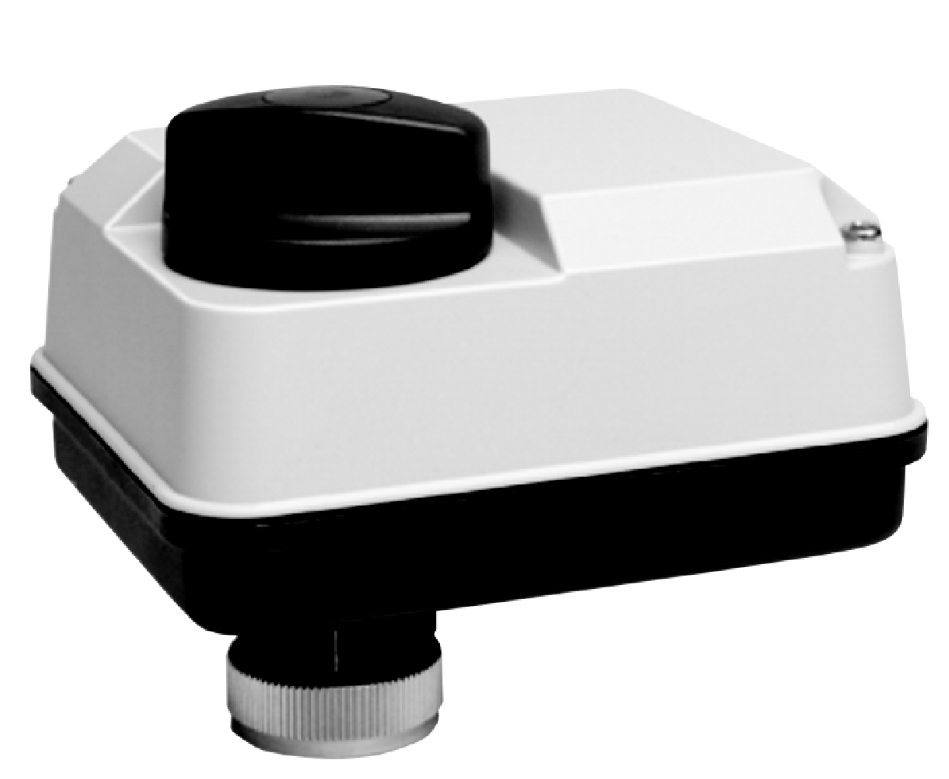

Honeywell ML7435E1004 Control Valve Actuator, 400N, 0...10V, 24VAC, NO-Stem Retracted

2 variants

Extended warranty 5 years

Compare
Print
Send to e-mail

Send product by e-mail:Honeywell ML7435E1004 Control Valve Actuator, 400N, 0...10V, 24VAC, NO-Stem Retracted

From email

To email

Additional message

Honeywell ML7435E1004 Control Valve Actuator, 400N, 0...10V, 24VAC, NO-Stem Retracted

Product code: ML7435E1004
EAN : 4024627040597
Manufacturer code: ML7435E1004
Warranty: 5 years

The control actuator 0/2...10V is suitable for zone control with a stroke of 6.5 mm and a force of 400 N. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 7,02

Bpost HD (Home Delivery):
2.7 workdays € 10,64

BPost - PP (Pick-up Point):
3.1 workdays € 9,91

FedEx Priority:
1.7 workdays € 12,71

DHL Express:
1.1 workdays € 16,94

DHL Express: 1.1 workdays, € 16,94
In stock 3 pcs

Parameters and catalogs

Control	2...10 V, 0...10 V
Emergency function	86 mm
IP Rating	IP 54
Lift	6.5 mm
Lifting force	400 N
Power Supply	24 VAC
Weight	0.54 kg

Catalog sheet download

Download PDF

The electric linear actuator 0/2..10V is suitable for continuous control with a stroke of 6.5 mm and a force of 400N. They are applicable in heating, ventilation, and air conditioning applications. The model is equipped with a return spring in case of power failure. The spring ensures automatic valve closure if the power supply is interrupted. Additionally, it is possible to operate the actuator manually during a power outage using the manual control located under the cover with an 8 mm hex key.

Features:

Return spring
Adjustable position in case of power failure
The control system is reversible
Position indication with a scale plate
Medium temperature 150 °C
Supply voltage 24 VAC
Stem force 400 N
Stroke 6.5 mm
Input signal: 0...10 VDC or 2...10 VDC
End stops limiting force
Running time 1 min
Approved according to DIN EN 14597 (up to a temperature of 130 °C) in combination with suitable Honeywell valves
