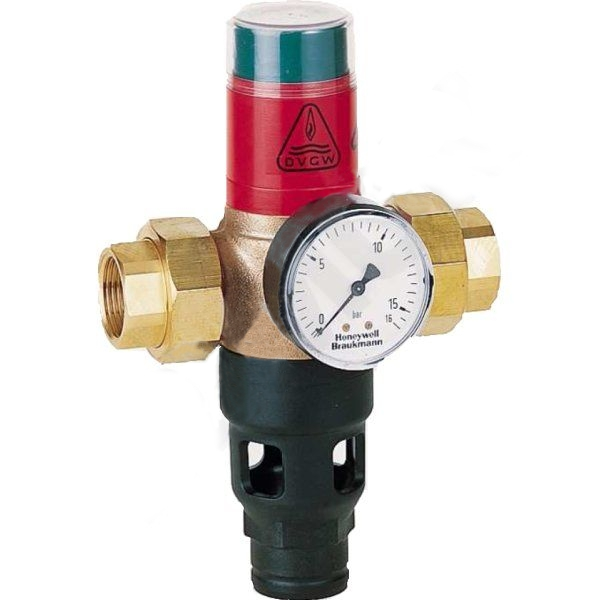

The pipe separator protects drinking water systems from contamination up to risk class 3 in accordance with ČSN EN1717. More information
Delivery to Belgium (days are avarages)
DHL Express: 8.1 workdays, € 16,94
| Connection size | DN 25 |
| Max. flow | 8 m³/h |
| Max. operating pressure | 16 bar |
| Max. water temperature | 40 °C |
| Medium | Drinking water |
| Weight | 1.90 kg |
Datasheet download
Download PDFThe pipeline separator protects drinking water systems against contamination caused by backflow or back-siphonage of utility water into the drinking water network. It complies with DIN1988 part 4, type 1 construction. It offers better protection than check valves as it provides protection up to risk class 3.
Compact design with easy maintenance, which does not require removing the separator from the pipeline. The separator is characterized by low pressure loss and high flow rate. When the pipeline separator is closed, a green color appears under the transparent cover. The separator is certified for use in drinking water systems and complies with the KTW recommendation.
Available in four variants with different opening pressures - A 0.5 bar, B 1 bar, C 1.5 bar, D 2 bar
ConstructionThe inlet pressure acts on the annular surface of the valve piston and pushes it against the direction of the spring, so the valve remains in the open position allowing flow. The pipeline separator remains open for flow until the inlet pressure drops below a certain value, causing the valve to close as the spring overcomes the low pressure.
