Parameters and catalogs

Detector type	Stationary
Measurement range	0-100 ppm
Output signal	ModBus RS485, 2x Analog Output 4-20mA/0-10V
Power Supply	24 VDC, 24 VAC
Type of gas	H2S - Hydrogen Sulphide
Weight	0.26 kg

Data sheet - ENG download

Download PDF

User Manual - ENG download

Download PDF

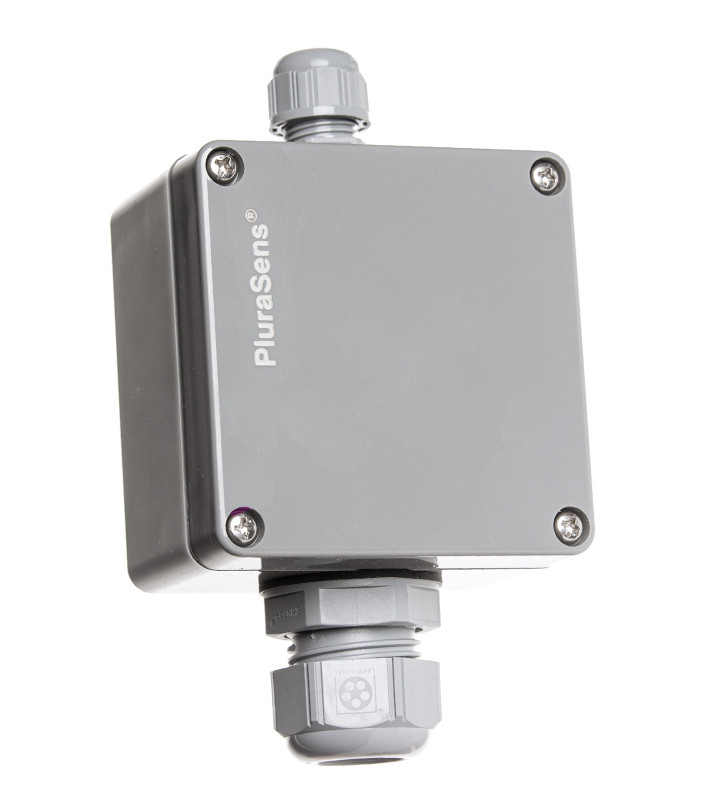

The E2618-H2S concentration sensor is a member of the new range of multifunctional measuring instruments PluraSens®. It is designed for industrial applications where it is necessary to monitor the presence of hydrogen sulfide (H₂S) in the air. The device uses a fully calibrated and temperature-compensated electrochemical sensor with high accuracy, fast response, and long lifespan.

The E2618 series sensors represent an intelligent solution for modern measurement and regulation systems with Modbus RS485 communication and two analogue outputs 4–20 mA / 0–10 V. Thanks to their robust design with IP65 protection, they are suitable for demanding operations, laboratories, or industrial spaces.

The sensor is available in versions:

wall-mounted version
wall-mounted with remote probe
for piping

With measuring range:

0...100 ppm H₂S (standard version)
other ranges on request

The device can be supplied with or without a display LCD screen.

The sensor is sensitive to gas:

Hydrogen sulfide (H₂S)

THE DETECTOR IS STANDARDLY CALIBRATED TO 100 ppm H₂S.

Each sensor is factory calibrated and ready for immediate use. The recommended recalibration interval is 6 months. The lifespan of the electrochemical sensor is approximately 2–3 years depending on operating conditions. Calibration can only be performed by a person certified by the manufacturer.

Do not hesitate to contact us for recalibration!

Features:

accurate and stable hydrogen sulfide measurement
robust wall or pipe housing (IP65)
two analogue outputs 4–20 mA / 0–10 V (adjustable)
digital interface RS485 Modbus RTU
option for remote probe and LCD display
replaceable electrochemical sensor
power supply 12–36 V DC (optionally 24 V AC)
fast response < 30 s (T90)

Suitable applications:

wastewater treatment plants
industrial operations and biogas plants
laboratories and technology rooms
chemical and gas storage
enclosed spaces with risk of hydrogen sulfide leakage

Technical specifications:

Measured gas / range	H₂S, 0...100 ppm
Sensor	electrochemical, diffusion
Resolution / Response	1 ppm / < 30 s (T90)
Power supply	12...36 V DC / 24 V AC
Analogue outputs	2× 4–20 mA or 0–10 V (adjustable)
Digital communication	RS485, Modbus RTU
Operating temperature	–30...+50 °C
Protection / Material	IP65 / ABS plastic
