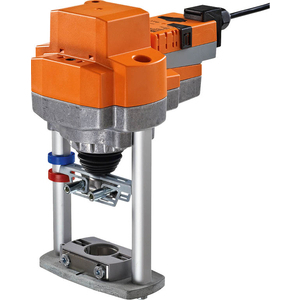

Linear Actuator Belimo EV24A-MP-TPC

Linear Actuator Belimo EV24A-MP-TPC

Product code: EV24A-MP-TPC
Manufacturer code: EV24A-MP-TPC
Warranty: 2 years

Belimo EV24A-MP-TPC actuator, motor lifting force 2500 N. Input voltage 24 VAC/DC. More information

Delivery

Delivery to Hungary (days are avarages)

FedEx:
2.2 workdays € 0,00

FedEx Priority:
1.9 workdays € 14,22

DHL Express:
1.1 workdays € 22,86

DHL Express: 1.1 workdays, € 22,86
In stock 4 pcs

Parameters and catalogs

Cable length	1 m
Control	0...10 V
Emergency function	0...25 mbar
IP Rating	IP 54
Lift	40 mm
Lifting force	2500 N
Power Supply	24 VDC, 24 VAC
Weight	4.32 kg

Data sheet download

Download PDF

Installation instructions download

Download PDF

Linear Actuator Belimo EV24A-MP-TPC, 2500 N. Input voltage 24 VAC/DC connected with a 1m cable with terminals 4 x 0.75 mm².

Using a button, it is possible to temporarily switch the actuator to manual control for the duration of the button press. The stroke can be adjusted using a hex key with an internal hex (4 mm), which is inserted into the top of the actuator.

The actuator is suitable for integration into the Loxone system.
