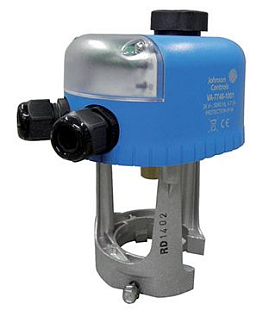

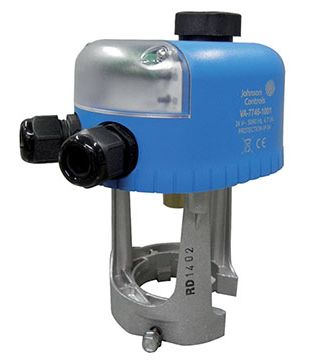

Electric Actuator VA-7746-1001 24 VAC with Proportional Control for VG7000 Valves. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Auxiliary contact | 0...5 V |
| Control | 4...20 mA, 0...20 mA, 0...10 V |
| Emergency function | 0...25 mbar |
| IP Rating | IP 54 |
| Lift | 20 mm |
| Lifting force | 500 N |
| Medium Temperature | 140 °C |
| Power Supply | 24 VAC, 24 VAC |
| Weight | 1.11 kg |
Catalog sheet download
Download PDFElectric lift actuator for Johnson Control VG7000 valves for use in heating, ventilation, and air conditioning applications. The actuators are self-adjusting, eliminating the need for complex installation and commissioning, as the actuator adapts itself to the connected valve. A column with 5 LED indicators offers easy visual monitoring of operational status, lift, and any fault messages. The high degree of protection allows installation in demanding environments. The actuator features a magnetic clutch that protects it from jamming and provides the necessary constant force for safe valve closure. In the event of a power failure, the actuator moves the stem to a pre-set position (extended/retracted).
