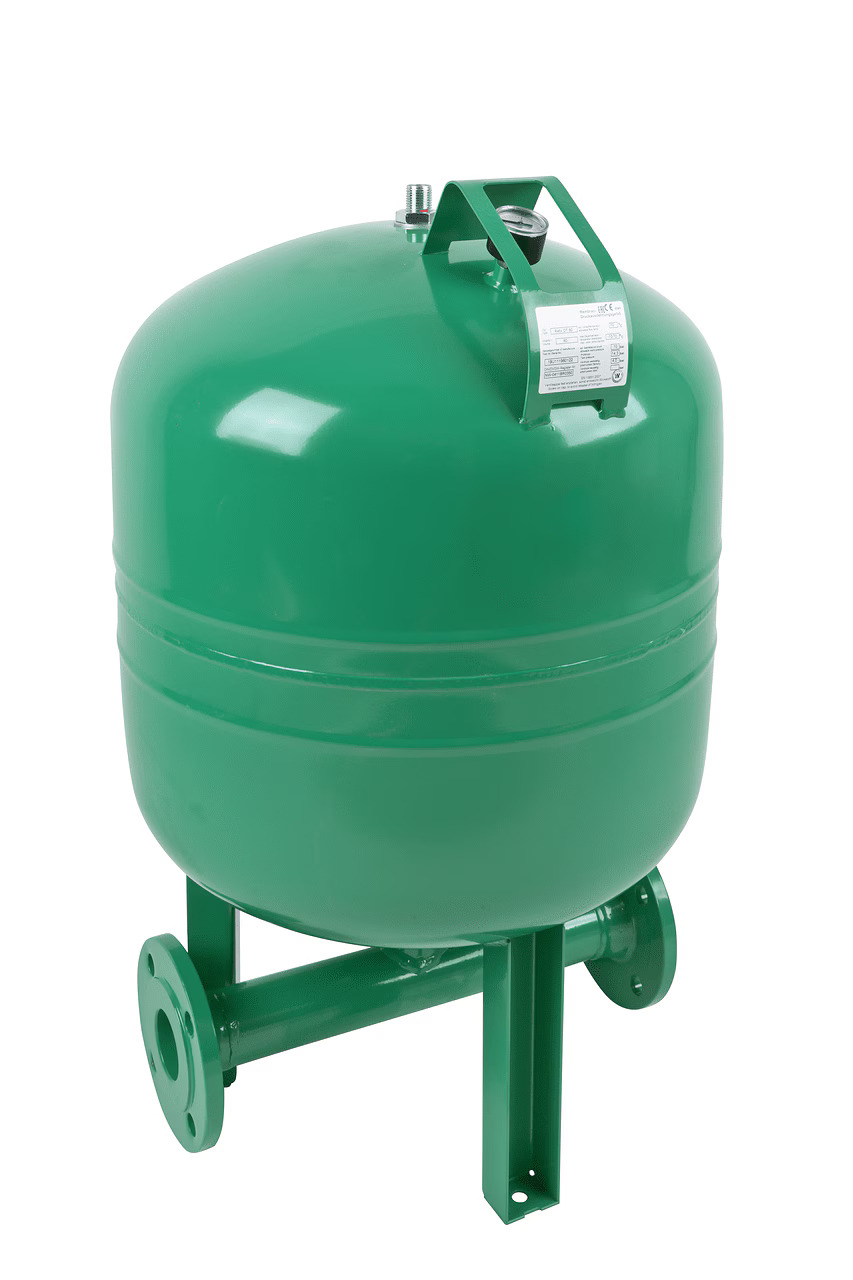

Membrane tank Wilo DT5 Duo 100 for drinking water and pressure boosting. Reduces system shocks and protects pumps. More information
Delivery to Belgium (days are avarages)
| Bore size | DN 50 |
| Max. operating pressure | 10 bar |
| Temperature | -10...70 °C |
| Volume of the pressure vessel | 100 l |
| Weight | 51.00 kg |
Catalog sheet download
Download PDFThe Wilo DT5 Duo 100 is a pressure diaphragm tank designed for potable water supply systems and applications requiring pressure boosting. The tank significantly reduces the frequency of pump cycling and dampens hydraulic shocks in the piping, thereby extending the lifespan of the entire system.
The construction complies with DIN 4807 T5 standards and the Pressure Equipment Directive 97/23/EC. The tank is equipped with a replaceable butyl diaphragm, DN 50 connection, and is supplied complete with fittings for closing and draining.
| Tank Volume | 100 l |
| Maximum Operating Pressure | 10 bar |
| Gas Inlet Pressure | 4 bar |
| Medium Temperature | –10...70 °C |
| Inlet / Outlet Connection | DN 50 / DN 50 |
| Tank Material | Steel |
| Diaphragm | Butyl |
| Installation Standard | DIN 4807 T5 |
