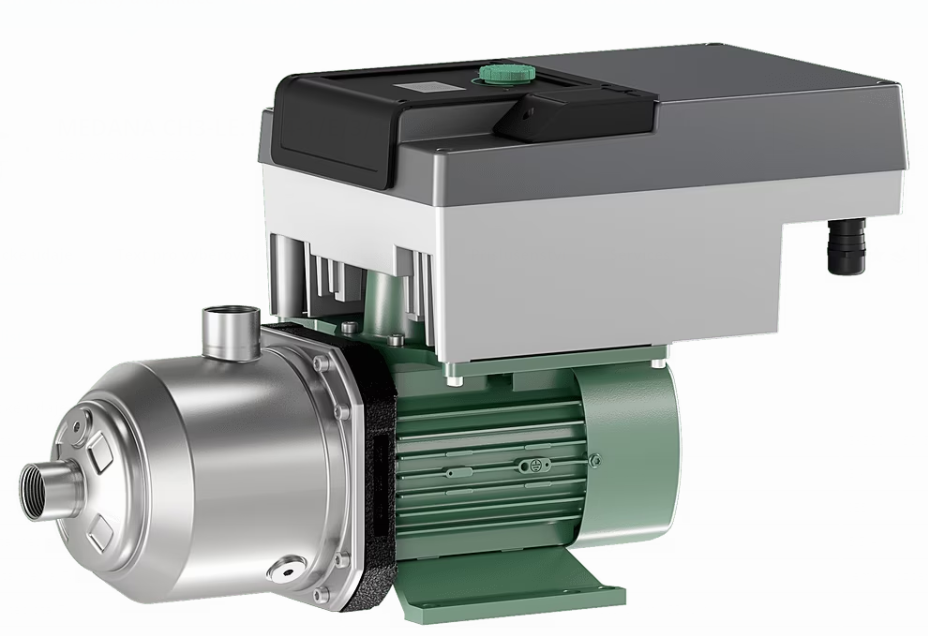

The highly efficient high-pressure centrifugal pump Medana CH3-LE.1004-1/E/3/10T is ideal for water supply, pressure boosting, industrial circulation systems, process water, closed cooling circuits, and heating applications. It features superior hydraulic performance, a compact and robust design with corrosion-resistant components. Thanks to materials like stainless steel and special seals, the pump is suitable for a wide range of applications and meets the requirements for contact with drinking water.

Key features:

• Maximum operating pressure: 10 bar, allows efficient pumping even in demanding conditions
• Media temperature: from -20 °C to 120 °C
• Materials: Complete stainless steel for the pump casing, impeller, and shaft, ensuring excellent corrosion resistance
• Motor power: 3 kW with IE5 efficiency, ensures high efficiency with low energy consumption
• Seals: Use of FKM material for shaft seals increases resistance to chemicals and temperature
• Installation: Discharge Rp 1" and suction connection Rp 1", allows flexible connection to systems
• Control: The pump is equipped with a 2"-LC colour display with intuitive controls, allowing convenient pump settings.

The pump boasts many special features such as detection of maximum and minimum pressure limits, dry run protection, and the possibility of connection to an automatic building management system. It also offers the possibility of connecting various sensors and external modules to extend functionality.
