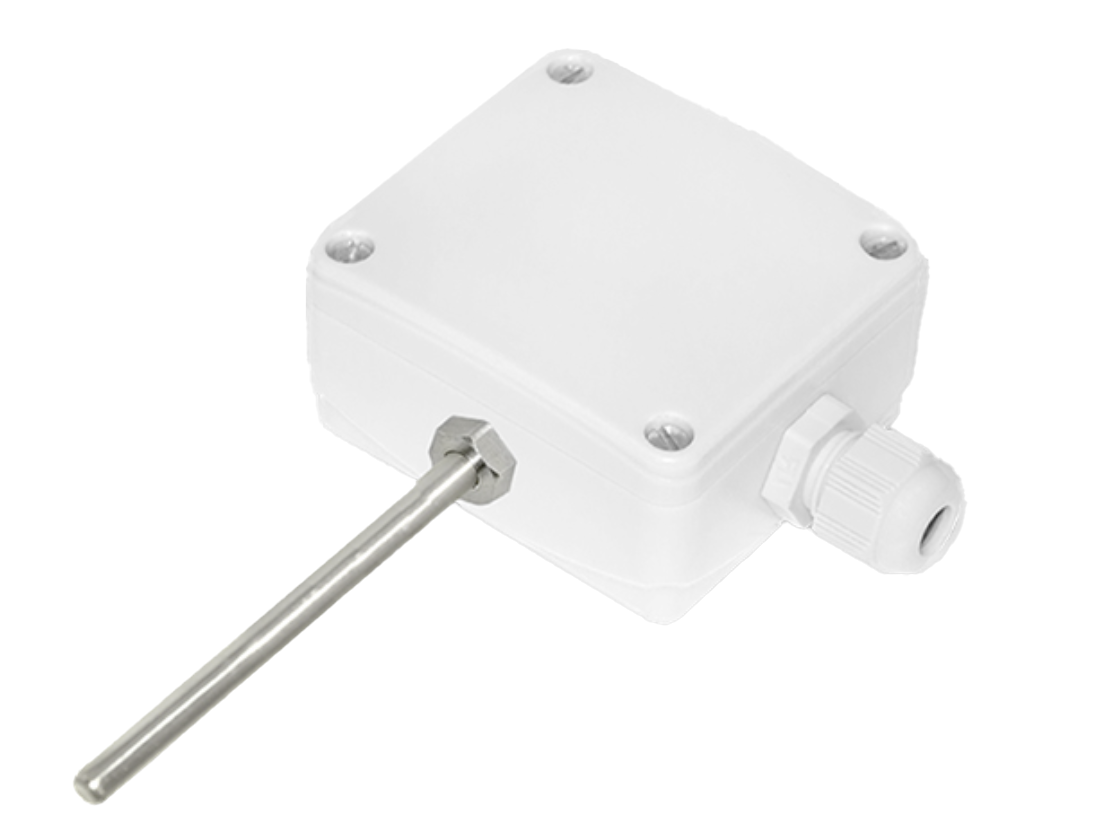

The P111U temperature sensor is designed for measuring temperature in industrial environments where a higher degree of protection is required. It is intended for measuring the temperature of ambient air and other gases. This model can be installed either directly on the wall using integrated holes or on the wall using the supplied plastic bracket.

Technical Specifications:

• Supply voltage: 11 ÷ 35 VDC
• Output signal: 0 ÷ 10 V
• Temperature range: -30 °C to 60 °C
• Measurement error: < 0.6%
• Protection class: IP 65

Additional Features:

• Output resistance: 100 Ω
• Maximum current consumption: 5 mA
• Material: Polycarbonate, stainless steel DIN 1.4301 for the measuring stem
• Cable gland: PG9, wire diameter 4 ÷ 8 mm
• Terminal block: COB 5/2 or COB 5/3, wire cross-section 0.35 ÷ 2.5 mm²

The sensor uses a Pt1000 resistive temperature detector, which is housed in a stainless steel stem, ensuring accuracy and long-term measurement stability. The sensors are not equipped with galvanic isolation of input and output, which should be considered when planning the system.
