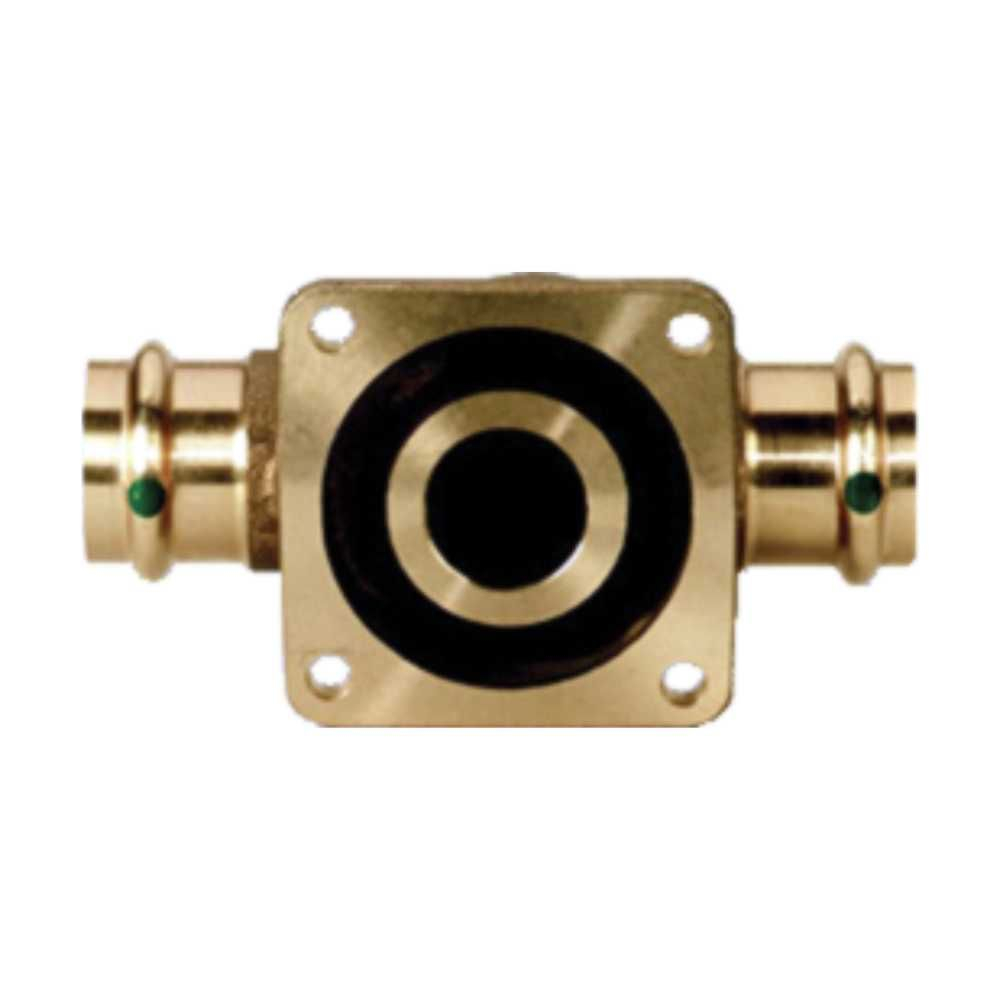

Pressed Flange SYR for DRUFI Filters 35mm (2315.32.025)

Product code: 2315.32.025
EAN : 4017905089180
Manufacturer code: 2315.32.025
Warranty: 2 years

The universal connection flange is a classic solution for installation connections. It is available in DN 20, 25, and 32 versions with double-sided threaded joints (external thread). All joints are flat-sealing. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

Connection size	DN 32
Connection Type	Flange
Weight	0.85 kg

Technical parameters download

Download PDF

The universal connection flange is a classic solution for installation connections. It is available in sizes DN 20, 25, and 32 with double-sided threaded joints (external thread). All joints are flat-sealing.

Features and Technical Specifications

Material: High-quality brass alloy
Operating pressure: max. 16 bar
Operating temperature: max. 30 °C
Medium: Drinking water
Installation position: Optional

Application

The flange is suitable for installation in both horizontal and vertical pipes. It is designed for drinking water systems according to DIN 1988 standard.

Special Features

Easy installation thanks to double-sided threaded joints
Safety check: SC-Contour (security checked) ensures visible leakage in unbonded joints during water pressure testing
Can be used in systems with drufi+ max-filters and domestic waterworks
