Electronic meter in compact dimensions for measuring thermal energy consumption in autonomous heating systems with an integrated radio communication system. More information
GLS delivery 3-4 working days. DHL express delivery 1-2 working days.
Would you like to get a price offer? Contact us
| Connection size | DN 15 |
| Connection type | Male thread |
| Flow | 0,6 m3/h |
| M-BUS communication | No |
| PN | 16 |
| Port-to-port lenght | 110 mm |
| Sensors included in the meter | Yes |
| Temperature range | 10...105 °C |
| Type of meter | Electronic |
| Weight | 0.80 kg |
DATA SHEET ENG download

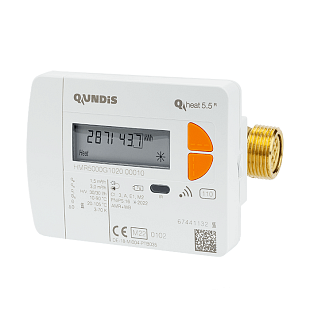

Download PDFElectronic meter in compact dimensions for measuring heat energy consumption in autonomous heating systems. Suitable for measuring thermal energy in apartments. The meter is powered by batteries and consists of a flow measuring part and two temperature sensors on the basis of which the meter evaluates the exact energy consumption. Standard installation in the system. It is possible to switch between supply and return modes (without changing the sensors).
Optimized display loop for easy loading operation, display test separates display of current value from planned value. After pressing any button in sleep mode, the Q heat 5.5R heat meter display will now show the current reading, the scheduled reading day, and the scheduled reading value. This loop repeats 10 times. Now readings by tenants or untrained staff are much easier.
The Q heat 5.5R is equipped with an integrated Q Walk-by or Q AMR radio system.
