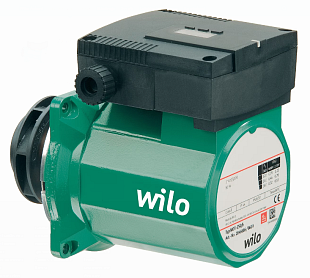

The backup motor Wilo TOP-Z 30/10 EM RMOT is designed for circulation pumps for hot potable water Wilo-TOP-Z/-ZV, particularly suitable when a replacement is needed. It is a complete functional unit that includes a drive motor, impeller, and electronic module. This unit is designed so that its functional equipment matches the pump's equipment, facilitating replacement and installation.

Main Technical Specifications:

• Power supply: 1~230 V 50 Hz
• Nominal power: 180 W
• Protection class: IPX4D
• Insulation class: H
• Maximum speed: 2800/2600/2400 rpm
• Motor design size: 32

Package Contents:

• Wilo backup motor
• Package containing an O-ring, 4 screws for motor mounting
• Installation and operation manual, service information for the TOP series

The product is supplied with all necessary components for easy installation and includes useful instructions for assembly and operation.
