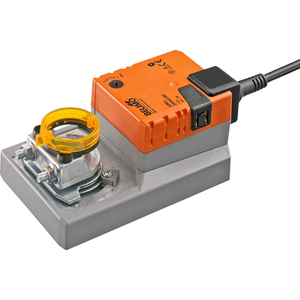

Rotary Actuator Belimo SMD24A (SMD24A)

Rotary Actuator Belimo SMD24A (SMD24A)

Rotary Actuator Belimo SMD24A (SMD24A)

BELIMO
  • Product code: SMD24A
  • EAN : 4251161596604
  • Manufacturer code: SMD24A
  • Warranty: 2 years

Compact damper actuator for HVAC dampers with quick and reliable adjustment, manual control, and the option for easy direct installation in HVAC applications. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    3.3 workdays € 7,02
    Bpost HD (Home Delivery):
    3.2 workdays € 10,64
    BPost - PP (Pick-up Point):
    3.1 workdays € 9,91
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • More than 5 pcs in stock

List price € 525,77
Price excluding VAT € 208,57
Price with VAT 21 % € 252,37
− +

Trustpilot

Parameters and catalogs

IP Rating IP54
Power Supply 24 VAC/DC
Temperature -30...50 °C
Torque 16 Nm
Weight 1.00 kg

Data sheet EN download

Download PDF

Installation guide download

Download PDF

The Belimo SMD24A damper actuator is designed for controlling air dampers in building technical installations. It offers direct mounting on the damper shaft with a universal clamp and an anti-rotation mechanism, manual operation with a button, and an adjustable working angle for precise end position settings.

The actuator operates on AC/DC 24V with open-close or 3-point control, achieving a torque of 16Nm and a running time of 20 s/90°. The IP54 protection rating, protection class III (SELV), and approval according to IEC/EN 60730 and cULus ensure reliable operation in demanding HVAC conditions. The hygiene test according to VDI 6022 confirms easy cleanability and low emissions.

Main Features

  • Direct mounting on the damper shaft with a universal clamp (10...20mm).
  • Manual operation with a lockable button.
  • Adjustable working angle, max. 95°.
  • Overload protection, no need for end switches.
  • Suitable for parallel operation (consider power consumption).

Technical Specifications

Power Supply AC/DC 24 V
Control open-close, 3-point
Torque 16 Nm
Running Time 20 s / 90°
Working Angle max. 95° (with adjustable stops)
Protection Rating IP54 (NEMA 2)
Protection Class III (SELV)
Environment –30...50 °C, max. 95% r.h., non-condensing
Connection/Interface 1 m cable, 3× 0.75 mm²; direction of movement selectable
Mechanical Interface universal clamp rotatable 10...20 mm; mechanical position indicator
Certification CE (EMC), IEC/EN 60730-1/-2-14, cULus; hygiene test VDI 6022
Note: Outdoor applications are possible if the device is not directly exposed to water, snow, ice, UV radiation, or aggressive gases and the environmental limits are observed.
