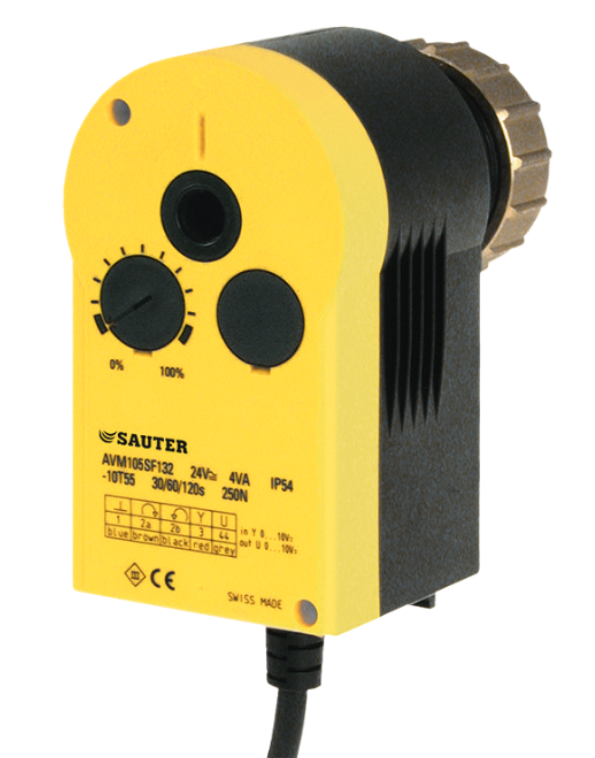

Actuator for 2-way and 3-way valves with continuous or discontinuous output. The actuator contains a stepper motor controlled by an electronic unit SUT (Sauter Universal Technology) and features a maintenance-free gear and force-dependent electronic shutdown. It automatically detects the control signal used (continuous/switched). It can be set to either a linear or equal-percentage characteristic. The actuator automatically adapts to the valve stroke value. A brass nut is available for mounting. Installation is possible from an upright vertical to a horizontal position.

Features

• Power supply 24 VAC/VDC.
• Max. medium temperature 100 °C
• Ambient temperature -10...55 °C
• Ambient humidity 5...95% RH
• Protection class IP54
• Response time 200 ms
• Stroke 8 mm
• Actuating force 500 N
• Actuating time 35/60/120 s

Function

Depending on the connection method, the actuator can be used as continuous 0...V, as 2P, or as 3P.

As 2P

The actuator is powered by the blue (MM) and black (02) wires. When the brown (01) wire is connected, the control branch of the valve opens. If the power is disconnected, the actuator moves to the opposite end position and closes the valve. Unused wires (03, 05) should be insulated to prevent contact with others.

As 3P

The actuator is powered by the blue (MM) and brown (01) wires, or the blue (MM) and black (02) wires. It acts on the valve through the rod and opens the valve when voltage is applied to the brown wire. If the circuit is closed through the black wire, the actuator closes the valve. In case of overload or if the actuator reaches the end positions, the motor is electronically disconnected. Unused wires (03, 05) should be insulated to prevent contact with others.

As continuous 0...10 V

The actuator is controlled by an integrated position controller depending on the signal y.

Direction of action 1: voltage on the brown (01) wire - with an increasing control signal, the rod extends and opens the valve.

Direction of action 2: voltage on the black (02) wire - with an increasing control signal, the rod retracts and closes the valve.

The starting point and range of the control signal are permanently set. Accessories are available to set partial ranges, allowing adjustment of the range and direction of the control signal's action.

After manual adjustment or in case of a power failure longer than 5 minutes, the actuator automatically resets (AVM105 35 s, AVM115 60 s).

When voltage is applied, the stepper motor moves to the valve's end position and closes it. Depending on the control voltage, any stroke between 0 to 8 mm can be achieved.

If the control signal in direction of action 1 is interrupted, the valve fully closes.

Suitable for 2-way and 3-way valve series:

• VUN/BUN
• VUD/BUD
• VUE/BUE
