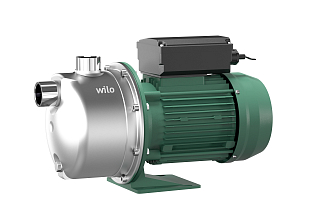

Self-Priming Pump Wilo Jet WJ 203 X (4212734)

Product code: 4212734
EAN : 4048482705637
Manufacturer code: 4212734
Warranty: 2 years

Self-priming jet pump Wilo Jet WJ 203 X with a power of 0.75 kW and stainless steel construction. Suitable for water supply and irrigation. Max. pressure 6 bar, IP44. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
3.3 workdays € 12,95

Bpost HD (Home Delivery):
3.2 workdays € 14,27

BPost - PP (Pick-up Point):
3.1 workdays € 13,78

FedEx Priority:
1.7 workdays € 75,38

DHL Express:
1.1 workdays € 81,07

DHL Express: 1.1 workdays, € 81,07
In stock 2 pcs

Parameters and catalogs

IP Rating	IP 44
Power Supply	400 VAC
Pump flow rate	5 m3/h
Pump head	42 m
Suction height	8 m
Weight	10.90 kg

Technical sheet download

Download PDF

The self-priming, single-stage jet pump Wilo Jet WJ 203 X is designed for water supply, irrigation, and rainwater utilization. Thanks to the integrated Venturi system, it allows self-priming up to a depth of 8 meters. The pump is made from durable materials such as stainless steel, ensuring high resistance to corrosion. Operation is simple thanks to the built-in switch, and connection to the electrical network is facilitated by the presence of a terminal block.

Key Features:

Self-priming technology: The built-in Venturi system allows pumping from a depth of up to 8 m.
Corrosion-resistant materials: The pump casing, shaft, and impeller are made of stainless steel.
Easy operation: Built-in switch for simple on and off.
Electrical connection: Connection to a three-phase network (3~230 V, 3~400 V) via a terminal block.
Compact dimensions: Easy installation thanks to the G 1 connection on both suction and discharge.

Technical Specifications:

Motor power: 0.75 kW
Rated current: 3.1 A
Motor speed: 2900 rpm
Maximum operating pressure: 6 bar
Medium temperature: 5–35 °C
Protection class: IP44
