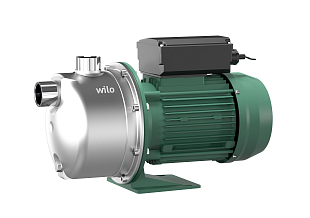

The self-priming, single-stage jet pump Wilo Jet WJ 204 is designed for water supply, irrigation, and rainwater utilization. Thanks to the integrated Venturi system, it allows self-priming up to a depth of 8 meters. The pump is made from durable materials such as stainless steel, ensuring high resistance to corrosion. Operation is simple thanks to the built-in switch, and connection to the electrical network is facilitated by the presence of a terminal block.

Key Features:

• Self-priming technology: The built-in Venturi system allows pumping from a depth of up to 8 m.
• Corrosion-resistant materials: The pump casing, shaft, and impeller are made of stainless steel.
• Easy operation: Built-in switch for simple on and off.
• Compact dimensions: Easy installation thanks to the G 1 connection on both suction and discharge.
• Power supply: 230 VAC
• Frame with handle

Technical Specifications:

• Motor power: 1 kW
• Rated current: 6.2 A
• Motor speed: 2900 rpm
• Maximum operating pressure: 6 bar
• Medium temperature: 5–35 °C
• Protection class: IP44
